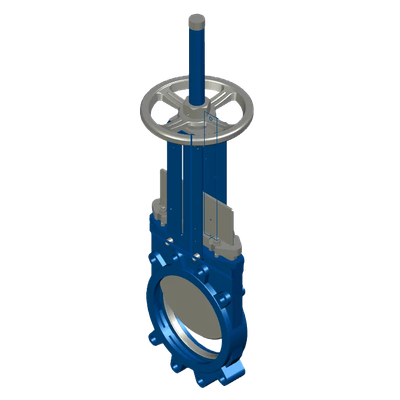

Flowrates - Unidirectional Knife Gate Valve
FromFlowrates
knife gate valves experts, Flowrates will provide the finest solutions to your process. Our extensive range of knife gate valves enables our customers to solve problems on site trough our solutions. They are available in wafer design and can be constructed casted, CNC machined, or welded : only your process and budget will set our limits.
Most popular related searches
knife gate valve
gate valve
knife gate
industrial sewage treatment
sewage treatment
sewage treatment biogas
sewage treatment industrial
sewage treatment industry
unidirectional valve
sewage
- Single-piece casted body with internal guides to support the knife
- Seating wedges help the knife to close against the body and seat
- Directional arrow on the body showing the correct mounting position
- High flow rates with low pressure drop
- Internal design avoids build up of solids that would prevent valve from closing
- Gate with rounded edges prolongs the working life of the rings and packing
- Recommended for water with maximum concentration of solid of 5%
- Paper Industry
- Mining
- Silo emptying
- Chemical plants
- Bumping Food
- Industry Sewage treatment
- Agri-food
- Biogas
- Ashes
- Powders
- Size : DN32/40 to DN1400
- Body material : Ductile Iron / Steel / Stailess steel / Duplex
- Disc materials : Stailess steels / Duplex.
- Seat materials : EPDM / NBR / Silicone / Food approved Silicone / Hypalon / FKM / PTFE
- Connection : Between flanges PN10/16 and Class 150 (PN20)
- Min Temperature : -20°C
- Max Temperature : +180°C (500°C if stainless steel body and metallic or graphite contact)
- Max Pressure : 10 bars
