REB Research - Uniform Temperature Membrane Test Rig

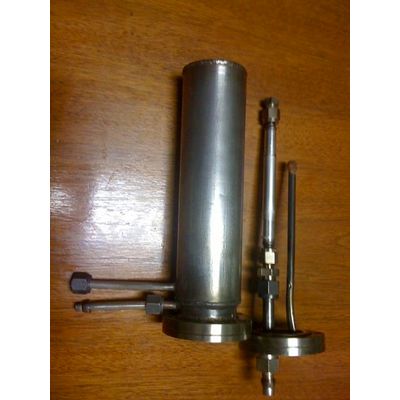

Uniform Temperature Membrane Test Rig used to test hydrogen permeation in disc or tube (specify) membranes at pressures up to 300 psi and temperatures up to 450 C. Stainless Steel, 1.75" OD with an interior volume 1.4" ID" by 8" or 18" long, sealed by a copper or graphite gasket. A counter flow annulus provides improved temperature uniformity. Membranes attach by swagelock and graphite ferrules, sold separately. Fits our high temperature furnace. See description and flows.
