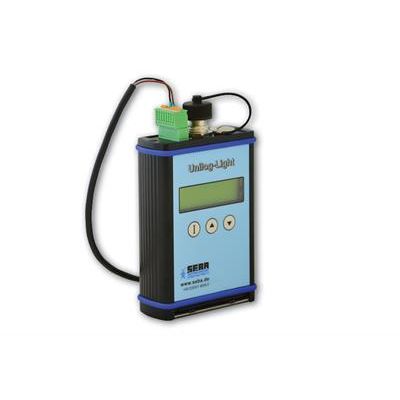

Data Logger - UniLog-Light
More affordable 1-2-channel data logger in pocket format // Robust, weather-proof housing with LCD and three multifunction buttons // Variant-specific connectivity of analog and digital sensors: 1) Precipitation measurement with RG50/RG100/TWR: Unilog-Light-R 2) Level measurement with float/counterweight: Unilog-Light-ENC 3) Level measurement with SEBA-pressure probe DS 22: Unilog-Light SHWP 4) Water quality measurement with SEBA multiparameter sensors MPS-D8/K16: Unilog-Light SHWP 5) Various measuring tasks with analog sensors: Unilog Light Analog 6) Various measuring tasks with SDI-12 sensors: Unilog Light SDI-12 // Large ring memory capacity of 1,120,000 readings Connectivity for external GSM/GPRS modem type ModComEconomical:
The new Unilog-Light in pocket format is the inexpensive solution for reliable storage of analog and digital signals.
Optimised:
According to the measurement task, the user has a custom-made Unilog-Light at their disposal.
Efficient:
The Unilog-Light is especially characterised by its low energy consumption as well as by its intelligent power management. Depending on which variant is chosen, the power supply can be provided with an internal 9 V block battery, an external 12 V battery, solar panel or with a 230 V/12 V DC power supply unit.
User-friendly:
Two APPs are available for configuration and data read-out of the UniLog-Light. Operating software ConfigPC (Windows) for beginners has an intuitive user interface (Wizard) for various routine tasks. ConfigAPP (Android) and BlueCon (our Bluetooth module) are combined to facilitate configuration and data read-out wirelessly with a smartphone or tablet, directly from a data logger.
Modular:
With the GSM/GPRS modem type GSM742 Unilog-Light can be expanded into a remote data transmission system with intelligent alarm management.
Application:
- According to which variant is required: e.g. for precipitation measurement, level measurement, water quality monitoring in landfills, monitoring the discharge of springs, flow measurement or detection of meteorological parameters of weather stations
