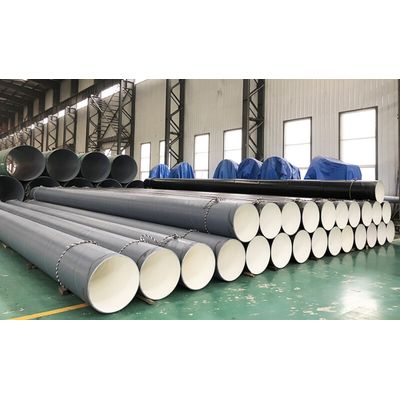

Union-Steel - Epoxy Coated Steel Pipe

SHARE

Epoxy Coated Steel Pipe is a group of metal pipes that are coated with epoxy material. The epoxy is a name given to polymers made from monomers of oxiranes. The chemical composition and structure of this material makes it glued together with other material so that it could act as a coating material. The use of Epoxy Coated Steel Gas Pipes are seen in gas supply systems. The coating could be applied by powdered, liquid or solid metallic line conditions. Epoxy Lined Steel Pipe is used in natural gas, water, sewage, petroleum, refineries and power plants as well.

Most popular related searches
epoxy coating
stainless steel pipe
pipe coating
drinking water utility
drinking water system
drinking water
barrier pipe
drinking water chemical
water utility
utility water
  • Product Name: Epoxy Coated Pipe
  • Size Range: 2’’ NB TO 24’’ NB IN SCH 20 , 30, 40 , STD , 60 , 80 , XS , 100 , 120 , 140 , 160 & XXS as Per NACE MR 01 75
  • Type: Seamless / ERW / Welded / Fabricated / LSAW

Standard

  • AC298 Internal Epoxy Barrier Pipe Coating
  • AWWA C210 Liquid Epoxy Coating and Lining
  • IGC 189-2006 : Internal Epoxy Barrier Pipe Coating Material
  • NSF/ANSI Standard 61 -for Drinking Water Systems Components
  • AWWA C 213
  • CSA Z245.20
  • IS 3589 Annexure C
  • Increase the flow of gas/water by 20%
  • High Steel Adhesion
  • High Impermeability for gas / water
  • Low Electrical Resistance
  • Great Corrosion Resistance
  • Ease of cleaning the pipeline and ease of water
  • Decrease line maintenance and up keep price
  • Low mechanical & abrasion Resistance
  • Suitable for Service Temperature up to 80°C
  • Size Range: 2’’ NB TO 24’’ NB IN SCH 20 , 30, 40 , STD , 60 , 80 , XS , 100 , 120 , 140 , 160 & XXS as Per NACE MR 01 75
  • Type: Seamless / ERW / Welded / Fabricated / LSAW
  • Length: Single Random, Double Random
  • End: Plain End, Bevelled End, Threaded
  • Type Of Coating: Epoxy Coating
  • Application: Drinking Water, Utilities Water, Chemical Handling, Gas Handling, Food Products
  • Grades:
  • API 5L X42 Seamless Pipes, 8 Inch, 12M, FBE Coated, SCH.STD
  • ASTM A106 GR B FBE Coated Pipes, 10 Inch
