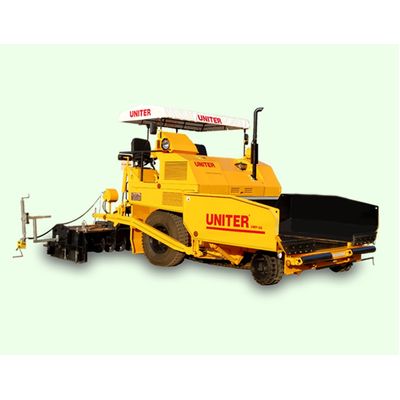

Uniter - Model UWP3A -Sensor Paver
Our sensor paver are highly recommend by the customers for it’s paving quality, fair price and least maintenance. We use MOBA sensor, that are German made. It gives high sensitivity, optimum use of paving material and highly satisfying road paver finishing. Our Sensor paver machine can pave width upto 4.5 meter, with hydraulically extendable screed. It includes material such as, bituminous, wet mix, GSB, DLC and DBM
Hydrostatic Sensor Paver FinisherModel UWP3A
- Transmission: Hydrostatic
- Engine Power: 74.5 hp @ 2200 rpm
- Laying Capacity: 150 TPH
- Hopper Capacity: 4.25 m3
- Paving Width: 2.5 m to 4.5 m
- Weight: 10,400 kg
- Wheels on rear axle: Two wheels
- Electronic Sensor: MOBA, Germany
- Operator Seat: Double
- Material Suitability
- Option 1: Bituminous material
- Option 2: Bituminous, Wet mix, GSB, DLC, DBM material
- Engine: Kirloskar make water-cooled electric start diesel engine, Model 4R1190NA1, 74.5 hp (54.8 kW) @ 2200 rpm or equivalent
- Electrical System: 12 V DC
- Emission Standard: BS-IV
- Speed Reduction Gearbox: Two speed reduction gearbox to achieve low speed for paving and high speed for traveling
- Laying suitability:
- Option 1: Bituminous material
- Option 2: Bituminous, Wet mix, GSB, DLC, DBM material (Dual Purpose)
- Laying Capacity: 125 TPH
- Laying Thickness: 200 mm (Max) to 10 mm (Min)8″ (Max) to 3/8″ (Min)
- Transmission: Hydrostatic
- Working Speed: 0 to 36 m/min (Max.)
- Travelling Speed: 0 to 17 km/hr (Max.)
- Weight: 10,400 kg (22,930 lb.) approx.
- Slope & Grade Control: MOBA, Germany make electronic sensor (Auto & Manual mode available)
- Maintenance Shutters: On two side of machine
- Traction & Conveyor Pump – Motor: Danfoss Power Solutions, Germany or equivalent
- Screed width: 2.5 m (8’ 2½”) basic width, Hydraulically extendable up to 4.5 m (14’ 91/8”)
- Crown (Manual): -1° / +4°
- Screed Heating: Yes, with 8 LPG burner facility
- Screed Vibration: Yes
- Screed Tamping: No. Available on request
- Rear Wheel:
- Two no. Pneumatic Tyre
- Size: 12.00 x 20
- Front Wheel:
- Two no. Solid Rubber Tyre
- 550 Dia. x 300 mm wide
- Fuel: 142 L (37.5 gal)
- Hydraulic Oil: 240 L (63.4 gal)
- Cooling System: 8.0 L (2.1 gal)
- Engine Oil: 13.0 L (3.4 gal)
- Control Panel Type: Sliding
- Operator Seat: Double Operator Seat
- Travelling Function: Left & Right side
- Operating Function: Left & Right side
- Steering: Hydraulic
- Brake: Service Brake: Caliper disc brake on both the sides Secondary Brake: Hydraulic Type Parking Brake: Caliper disc brake
- Conveyor & Auger: 2 Sets, one on each side
- Conveyor Drive: Hydraulic
- Conveyor Control:
- A. ON / OFF on operator panel
- B. Auto from operator panel
- C. Manual override on screed panel
- D. Reverse conveyor operation from main control panel
- Auger Screw Size: Dia 250 mm (10″)
- Auger Material: Ni-Hard / High Chromium Steel Material
- Hopper Operation: Hydraulic
- Hopper Capacity: 4.25 m3 (151 ft3)
- Hopper Width: Working: 3.22 m (10′ 6 3⁄4″)
- Closed:2.44 m (8′ 1/8″)
- Feed Tunnel Width: 1.28 m (4′ 2 3/8″)
- Operating Height: 3.12 m (10′ 2 7⁄8″)
- Shipping Height (canopy tilted): 2.58 m (8′ 5 5⁄8″)
- (w/o canopy & exhaust): 2.46 m (8′ 7⁄8″)
- Shipping Width: 2.56 m (8′ 4 3⁄4″)
- Length (Tractor unit + screed): 5.69 m (18′ 8″)
- Wheel Base: 2.57 m (8′ 5 1⁄8″)
- Dump Height: 0.74 m (2′ 5 1⁄8″)
- Thrust Roller Height: 0.65 m (2′ 1 5⁄8″)
Canvas Canopy; Working & Traveling Lights; Tool Kit with Jack; Horn
All operating levers including panel switch board are handy and within easy reach; All gears and shafts of gear box are made from alloy steel and are hardened and ground for efficient working; Screed is vibrated with hydraulic motor to compact laid layer; All jacks are having same kind of seal kit (Piston seal and rod seal of PU material).
