CEJN - Universal Blind-Mate Quick Connector (BMQC)
The Universal Blind-Mate Quick Connector (BMQC) for data center applications is developed within the OCP (Open Compute Project) initiative, an initiative that has established a new global standard within the data center industry community for quick connect couplings. Its compact design, blind-mate functionality, and impressive tolerance for radial misalignment of +/- 5 mm, together with an angular misalignment tolerance of +/- 2.7°, it is the perfect fit for Direct Liquid Cooling (DLC) setups in the data center segment.
Experience extra high misalignment tolerance with OCP BMQC
CEJN has long experience in quick coupling technology for thermal management, and our expertise has made us one of the contributors to the Open Compute Project (OCP) – a collaborative community developing interchangeable quick coupling solutions for liquid cooling systems.
The OCP BMQC obtains the same great features as the OCP UQDB. Still, instead of +/- 1 mm misalignment tolerance, the OCP BMQC has an extra high tolerance of +/- 5 mm radial misalignment and +/- 2,7° angular misalignment.
- Nominal flow diameter (mm): 5 mm
- Max working pressure (bar): 3.45 bar
- Material coupling: Stainless steel (AISI 303)

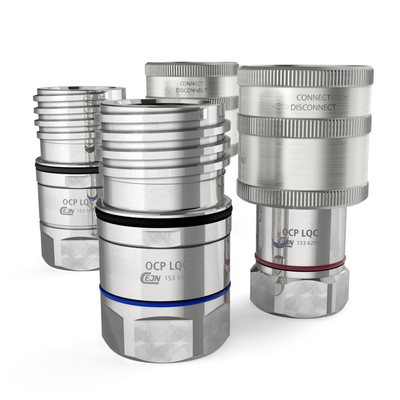

- Interchangeable with OCP LQC
- Screw-to-connect locking mechanism
- Safe and easy connection up to 5 bar
- UL-IEC 62368-1 G.15.2.3 approved EPDM seal
- Double O-ring seal for redundancy and extra leak protection
- Color coding options to eliminate cross connection
- BSP(G)/NPT threads as standard, other connections available upon request
