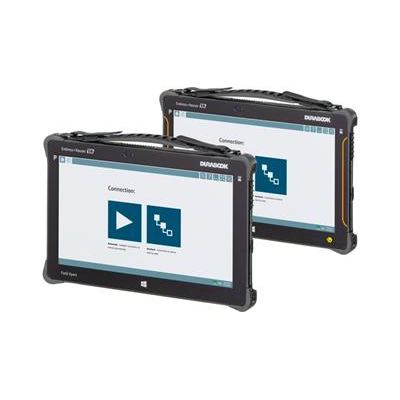

Field Xpert - Model SMT70 -Universal, High-Performance Tablet PC for Device Configuration
The Field Xpert SMT70 tablet PC for device configuration enables mobile plant asset management in hazardous and non-hazardous areas. It is suitable for commissioning and maintenance staff to manage field instruments with a digital communication interface and to record progress. This tablet PC is designed as a complete solution that comes with pre-installed driver libraries and is an easy-to-use, touch-enabled tool which can be used to manage field instruments during their entire life cycle.
-
High-performance, robust tablet with large 11.6" display and a battery runtime of up to 14 hours.
-
Touch-enabled device configuration software in 20 languages. Includes NAMUR NE 107 instrument diagnosis.
-
Pre-installed device driver libraries for all of the important industrial protocols.
-
Fast connection to devices with a single click thanks to automatic hardware detection, Online application software and DTM/Drivers update service offers new functionality and maximum security.
-
Integrated Heartbeat Verification incl. PDF documentation.
-
Access to HART devices in PROFINET systems (ET 200SP) with Fieldgate PAM SFG600.
-
Recommendation: The Library application is a valuable supplement for Field Xpert. Library saves and organizes all your documents generated with Field Xpert in the Endress+Hauser Cloud making everything safe, up to date and available everywhere.
The Field Xpert SMT70 tablet PC for device configuration enables mobile plant asset management in hazardous and non-hazardous areas. It is suitable for commissioning and maintenance staff to manage field instruments with a digital communication interface and to record progress. This tablet PC is designed as a complete solution that comes with pre-installed driver libraries and is an easy-to-use, touch-enabled tool which can be used to manage field instruments during their entire life cycle.
- Measuring Principle: Device configurator
- Function: The Field Xpert SMT70 tablet PC for universal device configuration supports protocols such as HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, and Endress+Hauser service protocols (CDI, ISS, IPC and PCP). The devices can be connected directly via a suitable interface e.g. a modem (point-to-point) or a bus system (point-to-bus).
- Input: Camera:
- 5 MP camera on the back with auto focus and LED flash with 1500 mcd
- 2 MP camera on the front
- Scanner:
- 1D/2D barcode scanner
- CPU: Intel Core i5-5200U (2,2...2,7 GHz)
- Memory:
- 8 GB with DDR3L adapter
- 256 GB SSD M2-SATA robust version
- Micro SD card slot, support for SDHC/SDXC
- Power supply: Replaceable, rechargeable lithium polymer battery, 11.1 VDC, 4100 mAh (45 Wh)/7800 mAh (86 Wh) (optional)
- Dimensions (WxHxD): 298.5 mm x 192 mm x 20 mm (11.4 in x 7.48 in x 0.78 in)
- Screen size:
- 11.6" LCD display, with Gorilla Glass protector
- Capacitive multi-touch screen
- Optical bonding, sunlight readable, LCD (730 Nit)
- Ambient light sensor
- Resoluion: 1366 x 768 pixels
- Communication interface:
- 2 x USB 3.0
- Intel Wireless AC7260 802.11 a/b/g/n/ac, DUAL Band WLAN
- Bluetooth 4.0 BLE, Class 1
- 4G LTE WWAN + 12 channel GPS (optional)
- Operation: Operating system:
- Windows 10 Pro (64 Bit)
- Configuration: Touch-enabled device configuration software optimized for Field Xpert. The software supports protocols such as HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, Modbus, and Endress+Hauser service protocols (CDI, ISS, IPC and PCP) and includes more than 2,700 pre-installed device and communication drivers.
- Optional: 4G LTE WWAN + 12 channel GPS
- Certificates:
- Degree of protection:
- IP65
- Shock resistance:
- MIL-STD 810G 516.6 Procedure IV
- Electromagnetic Compatibility:
- Interference conformance to
- EN 55022: 2010+ AC: 2011
- EN 55022 Class B
- EN 61000-3-2
- EN 61000-3-3
- Interference immunity to
- EN 55024: 2010
- IEC 61000-4-2
- IEC 61000-4-3
- IEC 61000-4-4
- IEC 61000-4-5
- IEC 61000-4-6
- IEC 61000-4-8
- IEC 61000-4-11
- Hazardous area approval:
- ATEX (Europe)
- ATEX II 3G Ex ic IIC T4 Gc IP64
- ATEX II 3D Ex ic IIIB T135°C Dc IP 64
- NEC/CEC (North America)
- NEC/CEC Class 1, Div. 2, Group A-D T4
- NEC/CEC Class 1, Zone 2, Group IIC T4
- IECEx (International) IECEx Ex ic IIC T4 Gc IP64
- IECEx Ex ic IIIB T135° Dc IP64
- Radio approval:
- CE, FCC, IC
