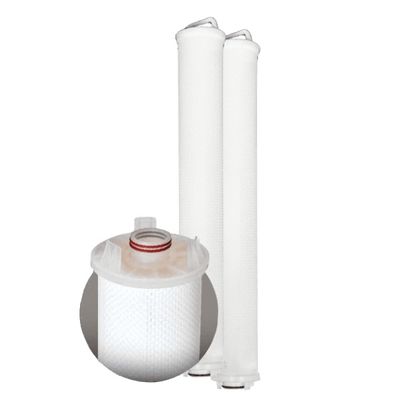

Fil-Trek - Model 700 Series -Universal Pleated Cartridge Filter
The 700 Series are designed with a high surface area for excellent for high dirt loading capabilities. An excellent option for extending the time between change-outs and minimizing disposal costs while providing more surface area for high contaminant applications than a standard 2.5” cartridge filter design. 6.5″ OD, 1.6″ ID. Vertical Pleat. Outside to Inside Flow. Absolute rated.
- Pleated Cartridges
- Absolute Rated
Materials of Construction
Media:
- Polypropylene
- Polyester
- Microglass
- Cotton
- Cellulose
- Nylon
- Nomex
Outer Support:
- Polypropylene
- Polyester
- Nylon
- Steel
Core:
- Polypropylene
- Tinned steel/Stainless steel
End Caps:
- Polypropylene
- Microglass
- Nylon
- Steel
Available Sizes/Lengths
Outside Diameter:
- 5″ (16.5 cm)
Inside Diameter:
- 6″ (4 cm)
Lengths:
- 39″ (99.06 cm)
Temperature Limit
Polypropylene -180°F (82°C)
Polyester – 240°F (115.5°C)
Microglass – 300°F (149°C)
Cellulose – 300°F (149°C)
Cotton – 300°F (149°C)
Nylon – 340°F (171.1°C)
Nomex – 400°F (204.4°C)
Maximum Differential Pressure
50 PSID (3.4 bar)
Recommended Change Out Pressure
35 PSID
Micron Ratings
1 – 70 micron
Filter Efficiency
Absolute rated at 99%
