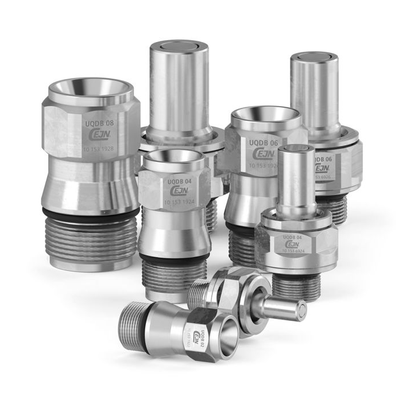

CEJN - Universal Quick Disconnect Blind-Mate (UQDB) Coupling
The Universal Quick Disconnect blind-mate (UQDB) coupling for data center applications is developed within the OCP (Open Compute Project) initiative, an initiative that has established a new global standard within the data center industry community for quick connect couplings. Compact design, blind-mate function and +/- 1 mm radial misalignment tolerance are features that makes this coupling solution a perfect fit for Direct Liquid Cooling (DLC) applications within the data center segment.
The universal quick disconnect blind-mate coupling for DLC applications
CEJN has long experience in quick coupling technology for thermal management, and our expertise has made us one of the contributors to the Open Compute Project (OCP) – a collaborative community developing interchangeable quick coupling solutions for liquid cooling systems.
The OCP UQDB is a non-drip quick connect coupling solution with blind-mate function developed within the Open Compute Project (OCP) initiative. Together with its compact design and +/- 1 mm radial misalignment tolerance, it is a perfect fit for Direct Liquid Cooling (DLC) applications within the data center segment.
- Nominal flow diameter (mm): 3.2, 6.4, 9.5, 12.7 mm
- Max working pressure (bar): 10 bar
- Material coupling: Stainless steel (AISI 303)
- Interchangeable with OCP UQDB
- Spill-free
- Compact design
- UL-IEC 62368-1 G.15.2.3 approved EPDM seal
- Facilitates hot swaps
- +/- 1 mm radial misalignment tolerance
- Double O-ring seal for redundancy and extra leak protection
- O-ring Boss threads (ISO 11926-3) as standard, other connections available upon request
