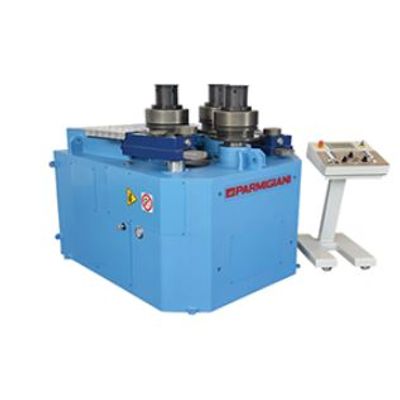

Planet - Model 25 -Universal Section Bending Machine
The section bending machines Planet are the result of almost 100 years of improvement and innovations. The rolls special design avoids section shape deformation and allows fast production and easy handling even in respect of the tightest bending tolerance.
Fully hydraulic drive with the greatest drive torque of any comparable machine. Starting from model Planet 25 the rolls driving is operated by 3 low speed hydraulic motors and 3 planetary reduction gears.
The PLANET have the largest, most powerful guide rolls available on the market. The six way adjustable design assures the best guiding of the section in and out coming the bending rolls. Mainly used for avoiding shape deformations of asymmetric sections, calibrating the bending radius and enlarging a too small diameter. The six-way design can be effective in many other rolling operations.
Three driven rolls
- 6-directional guide rolls:
- with fully hydraulic adjustment
- from operator control panel
- Combined design: vertical / horizontal
Drive transmission: Hydraulic
- Max section modulus: 60 -110 cm3
- Max. angle capacity: 100 x 12 mm.
- Max. I-beams easy-way: 200 mm.
- Max. H-beams hard-way: 120 mm.
- Max. pipes capacity: 127x6 mm.
