4B Braime - Model Whirligig, WG1A-BR, WG2A-BR, WG4A-BR, WG8A-BR -Universal Shaft Sensor Mount

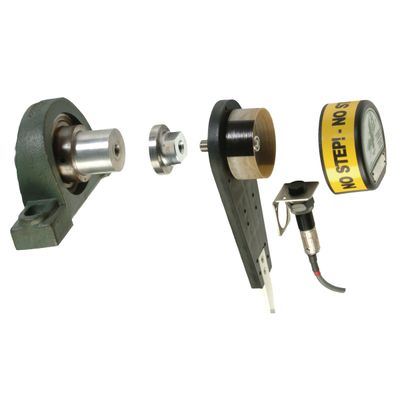

The Whirligig® is a fully guarded target for easy mounting of motion sensors. It is a universal shaft sensor mount suitable for all industry standard cylindrical or DIN style inductive sensors including 4B`s M100, M300, and M800 speed switch sensors. The sensor bolts to the Whirligig base plate and the complete assembly either bolts to the machines shaft through a M12 tapped hole, or is connected magnetically using 4B’s patented Mag-Con™ adaptor. Shaft or machine vibration does not affect the performance of the sensor, as the whole assembly moves with the shaft. With the Whirligig, installation of speed sensors is now simple, safe and reliable.
