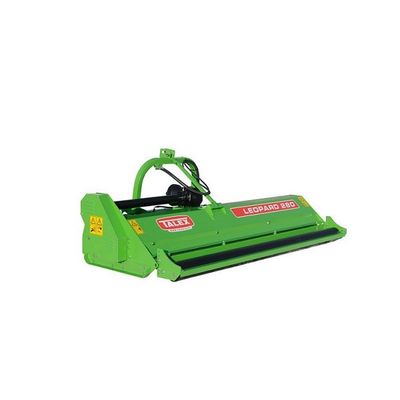

Leopard - Model 200 - Z908/1 -Universal Shredder

BODY

• Made of high-quality material
• Double-reinforced

HYDRAULIC SHIFT

• Range: approx. 40 cm

CUTTING HEIGHT ADJUSTMENT

• The support wheels allow cutting height adjustment of 2 to 25 cm
• The copying shaft allows cutting height adjustment by 2 cm to 8 cm

SAFETY FEATURES

• The PTO shaft fitted with a shear-pin clutch
• The angular transmission is fitted with a freewheel
• CLAMPEX clutch system on both pulleys

PULLEY

• Mounted on self-centering bushings, which are characterized by short assembly time and enable the transmission of high torques
• The machine is driven by means of 4 screw-adjustable V-belts

SKIDS

• They provide additional protection in the event of colliding with an obstacle
• Quick-change skids

WORKING SHAFT

• Electronically balanced
• Its large-diameter permits the use of more flails

AUTOMATIC CLEANING OF THE COPY ROLLER

TERRAIN COPYING

• It is performed using wheels or a copying roller

COUNTER-BLADE

• Fully integrated with the machine body for better shredding of the mown material

STANDARD EQUIPMENT:

• Hydraulic shift, roller or support wheels, working shaft with hammers or "y" blades, cutting height adjustment, counter-blades

ACCESSORIES:

• PTO shaft with shear-pin clutch (Leopard 160 and 200 – 620Nm, Leopard 250 and 280 – 830Nm)

• Model: Z908/1
• Working width: 2.0m
• Working efficiency: ~1.7 h/ha
• Min. power requirement: 40HP
• Number of V-belts: 4
• Number of Y blades/hammers: 64/32
• Weight: 520kg
• 3-point hitch category: II
• Hydraulic side shift: 400mm
• Working shaft diameter: 159mm
• PTO: 620Nm; shear-pin clutch; 540 RPM
