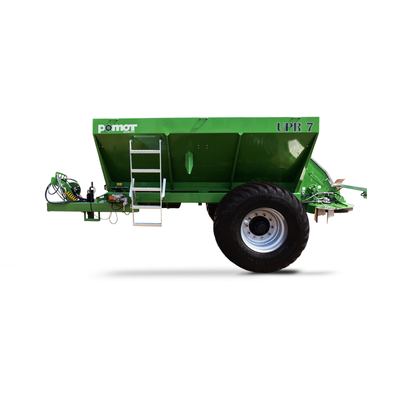

Pomot - Model UPR 7 -Universal Spreader
FromPomot sp. z o.o
The machine is designed for individual users who value precision and comfort at work. The chain, whether loaded with material or not, always delivers a consistent and even flow of material onto the spreading discs. A wide range of additional equipment allows you to customize the spreader to meet the needs of even the most demanding users.
Most popular related searches
chain conveyor
plastic coating
GPS antenna
hydraulic lifting
weighing system
hydraulic motor pump
hydraulic control valve
discharge protection
hydraulic valve
tachometer
Hopper Body:
- Made from 3 mm thick sheet metal
- Frame and load box coated with a paint finish
- Load box capacity – 5500 liters (payload 7 tons)
- Tank bottom lined with 12 mm plastic coating – prevents material from sticking to the floor and extends the chain’s lifespan
Running Gear:
- Tyres 400R22.5
- Frame made from closed-section profiles
- Bolted front hitch – drawbar eye diameter ø 50 mm
- Handbrake
- Service brake – two-line pneumatic system with 4-stage braking force adjustment
- 12V lighting system
- Adjustable support foot
- Design speed 40 km/h, operational speed 25 km/h
Spreading System (500 mm width):
- Chain conveyor – provides even and constant material feed for spreading
- Chain width 500 mm; chain crossbars precisely scrape material from the floor
- Chain runs on a 12 mm plastic coating lining the tank bottom
- Double cleaning of the chain conveyor (at the front of the spreader and rear at the disc discharge) – prevents chain clogging
- Chain conveyor driven by a 3-speed gearbox transferring power from the wheel to the chain, ensuring constant dosing regardless of travel speed
- Gearbox hydraulically lifted to stop material feed to the spreading discs
- Material spreading range from 36 kg/ha to 5000 kg/h
- Galvanized spreading discs, diameter 575 mm, with fixed profiled blades
- Spreading discs powered by hydraulic motors (requires tractor pump output of 50 l/min)
- Spreading width adjustment via hydraulic-mechanical valve controlling oil flow to hydraulic motors driving the spreading discs, or from tractor cabin with LOW SENCE function
- Spreading disc speed range from 0 to 1100 rpm
- Precise adjustment of granular material spreading width – adjustable from 2 to 36 m
- Boundary spreading valve – enables reduction of rotations and thus working width of the right spreading disc
- Tachometer indicating current spreading disc rpm
- Adjustment of spread material amount by selecting gearbox gear and opening the rear discharge gate
- Rear discharge gate mechanically operated, opening range 0 to 300 mm
- 150-degree opening scale for discharge gate with lock
- Stainless steel screws and nuts
- Stainless steel hydraulic connectors
Additional Documentation:
- User manual with spreading tables
- Warranty card
- Spare parts catalog
- 12-month warranty
