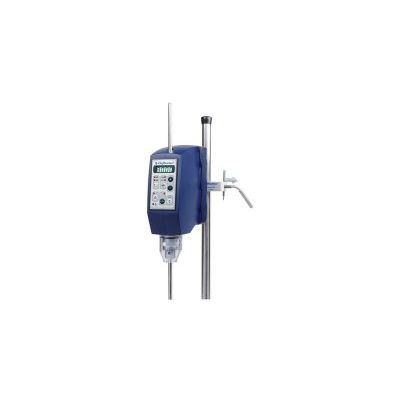

Caframo - Model BDC3030 -Universal Torque Stirrers
FromCaframo Limited
The perfect combination of higher torque and higher speed, Caframo’s Universal 3030 offers versatility to conquer the widest range of applications by a bench top stirrer. From larger batches of buffers and media to lotions and slurries, this stirrer will exceed your expectations. Ideal for workplaces with changing mixing needs as the business evolves, the 3030 will provide the most value for your overhead stirrer investment. Caframo stirrers are quiet, dependable, maintenance free and ideal for continuous use. Included in each purchase: Overhead stirrer motor, chuck, chuck guard, chuck key, support rod, power cord, manual in four languages (English, French, Spanish and German), calibration certificate and three year warranty.
Most popular related searches
- Speed: 20-3000 rpm
- Volume Maximum: 60 L (15.5 US Gallons)
- Viscosity Maximum: 50 000 mPa·s (50 000 cP)
- Torque Maximum: 341 N·cm (30 in-lbs = 480 in-oz)
- Output Power: 150 Watts (1/5 hp)
- Speed Display: Yes
- Speed - Low Range: 20-600 rpm
- Speed - High Range: 600-3000 rpm
- Speed Accuracy: +/- 1 rpm
- Torque Display: Yes
- Torque Maximum - Low Speed: 341 N·cm (30 in-lbs = 480 in-oz)
- Torque Maximum - High Speed: 68 N·cm (6 in-lbs = 96 in-oz)
- Torque Accuracy: +/- 12 N·cm (+/- 1 in-lb)
- Zero Torque: Yes
- Timer: No
- Through Shaft: Yes
- Chuck Maximum Shaft Diameter: 9.5 mm (3/8”)
- Chuck Guard: Yes
- Housing: Cast aluminum
- Weight: 5 kg (11 lbs)
- IP Rating: IP 42
- Voltage: 120 V/230 V
- Frequency: 50/60 Hz
- Ambient Temperature Operation: 5-40°C (41-104°F)
- Relative Humidity Operation: 80%
- Warranty: 3 years
- Brushless DC motor
- Totally enclosed metal housing
- Electronic control
- Smart two-speed transmission
- Through shaft
- Chuck guard included
- High efficiency (less heat)
- Protection from dust and product splashing
- Precise speed adjustment and speed maintenance as viscosity changes
- Transmission selects high-torque or high-speed range
- Easy impeller adjustment saves time
- Safely encloses spinning chuck to protect user
- Protects chuck from splashes
