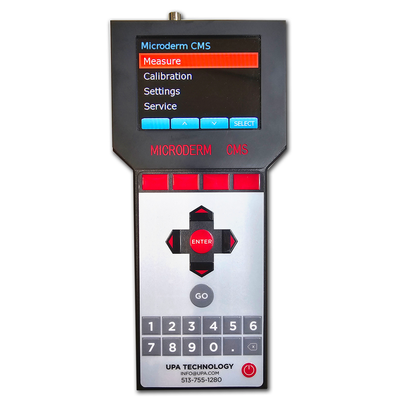

UPA Microderm - Model CMS -Portable Beta Backscatter Instrument for Thin Film Coating Measurement
Microderm CMS is a groundbreaking, portable beta backscatter instrument designed for non-destructive measurement of thin film coatings. This handheld device is ideal for use in process lines or laboratories, particularly within the electronics and electroplating industries. It measures coatings by detecting density differences between the coating and the substrate, providing results in accordance with ASTM B567 standards. The instrument features intuitive menu-driven software and straightforward calibration, enhancing its versatility. Its large color display offers real-time measurement statistics, with data transfer options via USB or Bluetooth. The Microderm CMS is suitable for a broad spectrum of applications, from oil films and dry lubricants to adhesives and metal tool coatings, making it an invaluable tool for industries like automotive and aerospace. The device can rapidly measure ultra-thin layers, even in challenging environments, thereby improving operational efficiency and accuracy.
The UPA Microderm CMS is a handheld beta backscatter instrument that is suitable for the process line or lab. It was originally developed in the USA for measuring precious metal coatings primarily in the electroplating and electronics industries. The uses for backscatter have been greatly expanded due to the accuracy and number of applications that can be measured quickly and non-destructively. This method is now used to measure many thin film coatings such as oil films and dry lubricants, adhesives, anodizing, hard coatings on machine tools, Diamond Like Carbon (DLC) and many others. The Microderm measures per ASTM B567 and measures based on having a difference of density of the coating and substrate. The Microderm’s menu driven, intuitive software and ease of calibration makes for versatile and convenient use. The large color display provides measurements along with real time statistics. Data can be downloaded via USB and saved to a flash drive or transferred via Bluetooth.
- Wide variety of probe guides and part stands for measurement on different size/shaped parts
- Rechargeable AA batteries
- Large full color, brightly lit display
- Calibrates in minutes using NIST Traceable, certified standards
- Adhesive / Glass, Steel, Aluminum
- Aluminum / Kovar, Steel, Glass, Silicon
- Aluminide / Nickel Alloys
- Anodizing (thin)
- Babbitt / Bronze, Brass, Copper, Iron
- Carbon
- Copper / Aluminum, Beryllium, Carbon, Ceramic, Plastic
- Chromium / Copper, Aluminum
- Cadmium / Steel, Brass, Stainless Steel
- CVD Coatings
- Diamond Like Carbon (DLC)
- Dry Lubricants
- Electroless Nickel / Aluminum, Plastic
- Electro Coat
- Epoxies
- Gold / Nickel, Copper, Silicon, Ceramic
- Graphite
- Iron Oxide / Mylar
- Lead / Brass, Bronze
- Lubricants / Steel, Aluminum, Brass, Copper
- Moly DiSulfide
- Mylar Film Thickness
- Nickel / Aluminum, Beryllium
- Oil Films
- Organics
- Paints
- Palladium / Nickel
- Photoresist / Copper
- Platinum / Nickel
- Platings
- Primer / Glass
- PVD Coatings
- Rhodium / Nickel, Copper, Gold
- Silver / Copper, Nickel, Ceramic
- Silicon / Plastic
- Solder / Copper, Brass
- Tantalum / Glass
- Teflon
- Tin / Copper, Brass, Steel
- Tin-Nickel / Nickel
- Titanium Nitride/ Steel, Stainless Steel
- Tungsten DiSulfide
- Operating Software: Menu-driven format for ease of operation.
- Display: High-resolution graphic color display with backlighting.
Single board computer with advanced processor
- Keypad: With soft keys ergonomically designed for single-hand operation.
- Probe Port: BNC connection preset at 900 or 550 volts
- Measuring Time: Adjustable from 1 to 100 seconds
- Measuring Units: English or metric in mils, microns, micro-inches, milligrams, or grams
- Resolution: Up to 4 digits; user-determined during input of thickness.
- Data Port: USB to Flash Drive
- Wireless Data Transfer: Bluetooth capable
- Memory: 32GB, expandable
- Power: 4 rechargable 1.5 volt NiMH batteries / 9 volt switching battery supply
- Dimensions: 8.75″L x 4.25″W x 2.5″H, (225mm x 108mm x 64mm)
- Weight: 1.1 lbs. (0.49 kg) w/ battery 0.8 lbs. (0.36 kg) w/o battery
