Ultravation - Model BioGardUV™ -Upper Room Germicidal UV-C Air Disinfection System

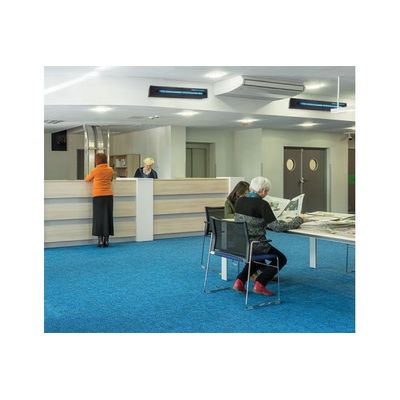

Ultravation BioGardUV™ germicidal ultraviolet air disinfection destroys airborne pathogens by exposing the upper regions of a room to germicidal UV light. Since air naturally circulates in any room due to convection, air that is warmed in the lower part of a room (from respiration and other sources) continually rises where it will be exposed to UV light, which kills airborne bacteria and viruses in seconds. Since the UV light field is restricted to areas above seven feet, the room is safe for occupancy while the air is continuously disinfected.
- Wall mount and bi-directional ceiling mount models
- 22- and 33-inch UV lamp models
- Available with or without a quiet 67cfm fan (30 db)
- Bi-polar ionization option.
- Focused 254nm germicidal UV light
- 9,000 hour UV lamp life
- Energy efficient
- Galvanized steel construction with rugged powder-coat finish
- Safety interlock switch
- Power connection options to accommodate existing wiring and local/national codes
FS-22 and FS-33 models disinfect the air that naturally circulates in the room through convection. Warmed air from activity in the lower parts of the room including respiration rises, carrying pathogens into the disinfection zone above. The disinfected air cools and falls back to the lower regions. Available with 22″ or 33″ UV lamp lengths.
FS-22F and FS-33F models include a quiet (30db) fan that accelerates the airflow and directs it past the UV lamp at 67 cfm, and creates airflow across the upper part of the room where disinfection continues.
Bi-polar ionization can be added (FS-22F and FS-33F) breaks down odors and airborne toxins, augments disinfection and reduces micro particulates. Also available with 22″ or 33″ UV lamp lengths.
Ceiling mount models install flush-to-ceiling or with optional pendents. Ceiling mount models create an extended disinfection zone to the front and to the rear.
Important: The 7-foot minimum installation height requirement (measured from the bottom of the unit) must be observed to assure the safety of the occupants.
