AVE - Model AVE-764 Series -Urine Formed Elements Analyzer

• All types of Urine Formed Elements are classified and counted, with automatic erythrocytes morphological analysis available and real images and statistical diagrams displayable and printable;
• It is connectable to Automatic Urine Analyzers and a comprehensive report is generated;
• Urine physical indexes are reportable;

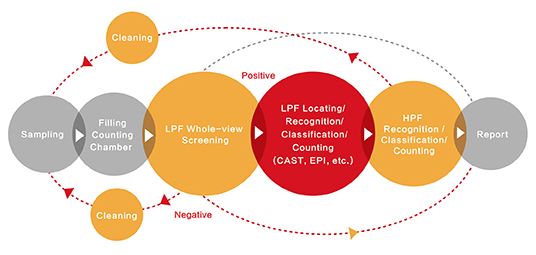

Use automated morphological microscopy technology to capture real images of urine formed elements, and then locate and track, recognize, classify and count them.

• Made strictly according to ISLH Recommended Reference Procedure for the Enumeration of Particles in Urine;
• Un-centrifuged urine samples at cutoff concentration level of 3-5cell/µl are detectable;
• Automatic sampling system with liquid level detection;
• Automatic recognition, classification and quantitation of urine formed elements;
• Precise erythrocytes morphological analysis helps to determine the source of hematuria;
• Real whole view-field microscopic images of urine formed elements are presented;
• Automatic notice of verification and on-screen verification, no additional microscopic review needed;
• Characteristic parameters of urine formed elements are available for further clinical research;
• Standardized and confirmatory analysis report with both images and diagrams available;
• Self-learning ability continuously improves the recognition accuracy;
• Unique morphological quality control available;
• Unidirectional or bidirectional interface with LIS/HIS;
• Software and language upgrades by USB stick;
• Combinable with automatic urine analyzers, customized for medium or large-sized laboratories;

Auto-detected Urine Formed Elements:  Normal red blood cells (NRBC), Abnormal red blood cells (ARBC), White blood cells (WBC), Casts (CAST), Epithelial cells( EPI), Yeast (YST), Crystals (CRYS), Mucus (MUC) and Bacteria (BAC).Further sub-classification is available with manual on-screen verification!

• Magnification:  Standard 10X & 40X images
• Memory:  Min. 200,000 results (including all images captured)
• Min. Sample volume:  2.0 ml
• Sample level detection:  Yes
• Max. Sample loading number:  6 racks of 10 tubes
• Throughput:  Up to 80 tests / hour (764A), up to 100 tests / hour (764C), up to 120 tests / hour (764B)
• Built-in Computer:  Yes
• Built-in Barcode reader:  Yes
• Printer:  Laser, external, optional
• Interfaces:  USB, RS232, LAN
• Dimensions (main unit):  680 x 650 x 545mm (L x D x H)
• Weight (main unit):  59kg
• Power (main unit):  100-240V~50/60Hz, 450VA
