Zxonic - Model Type 1611 -USB-Based Measurement Microphone Set
Type 1611 is a high-precision, USB-based measurement microphone set designed for effortless plug-and-play operation. Covering a wide frequency range from 3 Hz to 23 kHz and supporting a dynamic range of 16 to 140 dBA (combining both left and right channels), it delivers high end performance in a compact form.
By connecting to smartphones, tablets, or computers via USB, Type 1611 transmits high-fidelity digital audio directly—bypassing the limitations of built-in device microphones. When paired with compatible software, it transforms your smart device into a Class 1 digital sound level meter or a real-time signal analyzer, capable of performing:
- Integrated measurements
- Statistical analysis
- Octave and 1/3 Octave band analysis
- FFT spectral analysis
Compliant with IEC 61672 Class 1 and IEC 61260 Class 1 standards, Type 1611 ensures reliable and accurate measurements for professional applications.
Typical Use Cases
- Spaces without SLMs or equipment
- Precision sound measurement
- Acoustic testing and reseach & development (R&D) environments

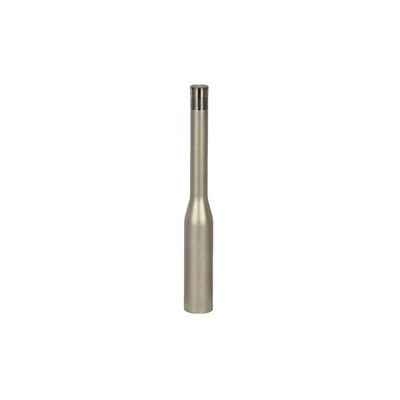

Type 1611 USB Microphone
- Standard: IEC 61672 Class 1, IEC 61260 Class 1
- Microphone: Type 1025
- Frenquency Range (+/- 0.5 dB): 3 Hz - 23 kHz
- Dynamic Range: 16 - 140 dB(A)
- Measuing Range (Left Ch.): 16 - 100 dB(A)
- Measuing Range (Right Ch.): 56 - 140 dB(A)
- Data Interface: USB 2.0, USB 1.1
- A/D Sample Rate: 48 kHz, 96 kHz, 192 kHz
- Diameter: 1/2 inch
- Microphone Capsule Thread: 60 UNS
- VD PID Programmable: Yes
- Dimensions (mm): 165 mm x 20 mm
- Weight (g): 96 g
