Mightex - Model TCx-1024-U -USB2.0 Machine Vision 1024-Pixel CCD 8/12-Bit Line Camera with External Trigger

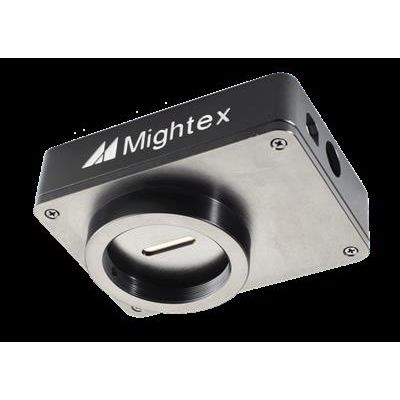

Mightex’s TCx-1024-U series line camera is a high-speed cost-effective high-performance machine vision monochrome line-scan CCD camera, based on a single-line, 1024-pixel CCD chip with USB2.0 (480 Mb/s) interface. CCD line cameras have several advantages over their area-array counterparts, including high optical linear resolution that allows systems developers to use the cameras to capture two-dimensional (2-D) images by moving the object or the CCD perpendicularly to the scan line. The TCx-1024-U is a compact linear camera ideal for a variety of OEM applications in industry process control, optics, biology, spectroscopy and reflection imaging. Setting up the TCX-1024-U line camera is very easy, the user simply installs the latest version of the operating software onto any desktop or notebook PC and then connects the USB cable from the line camera to the PC. There is no need for installing a DAC card, or using an external power supply.
SPECIFICATIONS
Parameter Specification
CCD High performance CCD sensor
Number of Pixels 1,024
Pixel Size 14μm x 14μm
Spectral Range 300nm to 1,000nm for TCE-1024-U (Glass Window)
200nm to 1,000nm for TCE-1024-UF (Fused Silica Window)
Pixel Output Clock 32 MHz
Frame Buffers on Camera 16,384/8,192 Frames (8/12bit mode)
ADC Resolution 8 or 12 bits
External Trigger Yes
Trigger Cable ACC-CAM-DIN8
Exposure Time Range 0.04ms ~ 655ms
Gain 6 ~ 42 (dB)
GPIO Yes (4 programmable I/O’s)
Scan Rate 25,000/10,000 scans/second (8/12bit mode) in NORMAL mode*
>11,000 scans/second (8bit and 12bit mode) in TRIGGER mode**
Host Interface USB 2.0
SDK Features
Operation Systems - Windows 2000, XP, Vista, Windows 7, 8/8.1, and 10
Minimum Requirement -RAM > 64MB; Available Hard Disk Space > 50M
USB Port- USB2.0
Multiple Cameras - Supported
Plug & Play - Not recommended
Device Driver - Yes
Demo Application - Yes
Library Files - Yes (DLL files and Static Library file)
Example Codes - Yes (VC++ and Delphi)
Frame Attributes* - Exposure Time, Time Stamp, Trigger Event Count, Over Exposure Detect.
FEATURES
- USB2.0 (480Mb/s) compatible
- High speed (up to 25,000 scans/second)
- No external power supply required
- Optical integration time adjustable from 40us to 655ms
- Settable frame time from 40us to 655ms
- Trigger Burst mode, allowing user to set frame count and frame interval to be grabbed for each trigger
- Settable gain from 6dB to 42dB
- Fused Silica window for “UF” version
- 1024 square pixel Silicon linear CCD array
- 14µm x 14µm pixel size
- 12-bit A/D converter
- External trigger capability
- 4 GPIO Pins
- SDK for user applications
- Demo software with GUI
- Compatible to Windows 2000, XP, Vista, 7/8/10
APPLICATIONS
- Machine vision
- Industrial process control
