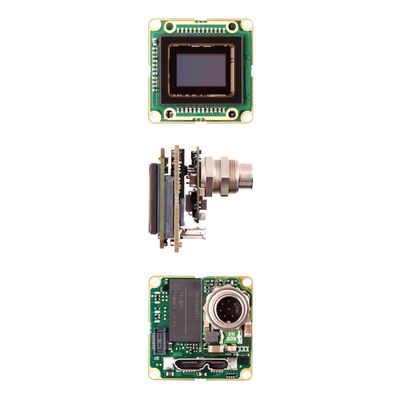

Sony - Model IMX174 -USB3 Color Board Level Camera
Full HD camera Applications: In-situ optical inspection camera, fast process capturing, e.g. golf club swings, Intelligent Transportation Systems (ITS), Open road tolling and Traffic monitoring, Industrial Automation, Machine Vision, Facial Recognition, Motion Capture, Automotive crash testing, 3D scanning, Robotic Arms, Material and Life science Microscopy, Ophthalmology and Retinal imaging, Medical Imaging, Flat panel inspection, Dental, Kiosks, Security, Biometrics. Board level 2.3 MP Color Sony CMOS Pregius™ Camera with USB 3.1 NOTE: Please check MOQ and various connector options or Sony IMX249
- Small dimensions: 26 x 26 x 33 mm, 38 grams
- 2.3 Mpix at 165 fps @8bit
- With flat ribbon flex cable (xiX) ideal for Embedded vision systems
- USB3 Vision Compliant
Part Number: MC023CG-SY-BRD
Resolution: 1936 x 1216
Frame rates: 165 fps
Sensor model: Sony IMX174
Sensor type: CMOS RGB Bayer Matrix
Sensor size: 1/1.2"
Sensor active area: 11.3 x 7.1 (Diagonal mm) 13.4
Readout method: Global shutter
Pixel size: 5.86 µm
Digitization: 10, 12
Data interface: USB 3.1 Gen 1
Dynamic range: 71.7 dB
Full Well Capacity: 30 500 e-
Dark current: 3 e-
Readout noise typ.: 7.36 e-
Signal to noise ratio: 45 dB
Exposure range: 19µs to 30sec, in steps of 4.96µs
I/O Ports: GPIO IN, OUT
Power consumption: 2.4 Watt
Weight: 38 grams
Dimensions WxHxD: 26 x 26 x 33 mm
Operating temperature: 50 °C
