Canadian Life Science

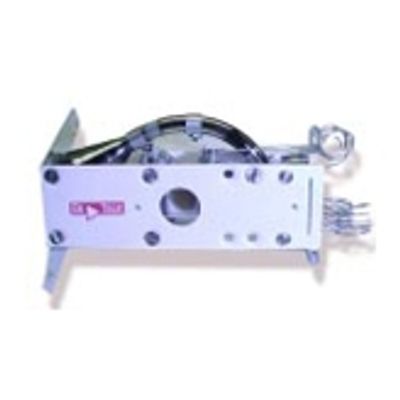

Pe-Sciex - Model 471 -Used in Elan 5000A (Mounted)
PE / Sciex ELAN5000A (mounted) Store detectors out of sunlight sealed in Nitrogen filled bag. When installing detector into instrument use powder-free finger cots or gloves. Before running samples follow the preconditioning procedure. If detector becomes contaminated with dust or oil, clean in isopropyl and dry in a 150°C oven for 30 minutes.
Most popular related searches
- Maximum Bake Temperature 300°C
- Maximum Operating Temperature 200°C
- Mode of Operation Pulse Counting
- Typical Gain at 2500 Volts 5 x 107
- Typical Bias Current >21 Micro Amps
- Resistance 40-120 Meg Ohms
- Maximum Linear Output Current 10% of Bias Current
- Dark Noise <.05 cps
- Pulse Height Distribution >120%
- Pulse Width >18-20 nSec
- Rise Time >3-5 nSec
