Advanced Energy - Model Luxtron m924 -Utility Module
OEM Board for Fiber Optic Transformer Winding Hot Spot and Temperature Monitoring. Advanced Energy`s Luxtron m924 utility module is a cost-effective OEM board that provides temperature monitoring with RS485 Modbus and RS232 ASCII digital communication. Four channels, expandable up to 64. Direct, accurate, and real-time transformer winding hot spot and temperature monitoring. Backward compatible with Luxtron DipTip and quality probes for utility applications.

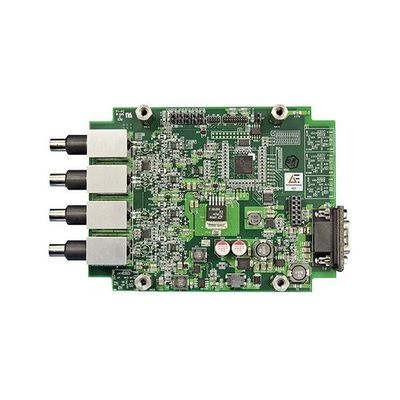

The Luxtron® m924 utility module is one board that contains four fiber optic temperature sensing channels, RS232 ASCII and RS485 Modbus digital outputs, and 5 to 24 VDC power input connection. The m924 board conditions the measurement signal from Fluoroptic® probes and reports to the OEM control system. The custom non-metallic probe sensors are safe in harsh environments and connect to the m924 board via robust fiber optics.
The m924 is a guaranteed backward compatible module when using Luxtron Fiber Optic DipTip and quality probes, extension cables, and tank wall plates.
- Easily integrate into OEM equipment
- Act immediately and help prevent transformer asset damage with real-time measurement
- Utilize instant results so controllers and pumps can take action immediately
- Benefit from the experience and expertise of our application engineers
- Reduce insulation damage and boost the useful life of the transformer
- Single PCB design with RS485 Modbus and RS232 ASCII
- Custom probes for challenging applications and EMI environments (plasma, RF, microwave, magnetic, high voltage)
- Safe, reliable, stable, and immune to electromagnetic interference
- Proven design with thousands of reliable systems installed worldwide
- Works with all current Luxtron brand Fluoroptic utility probes and fiber optic extensions
Performance
- Channels: 4 or up to 64 with RS485 Modbus
- Temperature Range: -30 to 200°C
- Measurement Range: Up to 50 Hz per channel
- Measurement Resolution: 0.01°C (digital output)
- Accuracy (No Calibration): ±2°C (DipTip and quality probe only)
- Noise: < 0.1°C (1-sigma STD at 1 Hz)
Environmental Specifications:
- Operating Temperature Range: -40 to 85°C
- Storage Temperature Range: -30 to 75°C
- Relative Humidity: 80% RH (max) non-condensing
- HxWxL: Overall (main board) 23.7 x 100.6 x 134.4 mm
Communication
- Serial Output: RS232 and RS485
- Protocol: ASCII (RS232) and Modbus (RS485)
Electrical
- Input Power: 5 to 24 VDC +5%
- Average Power: 4W
Typical Applications
- OEM transformer control and monitoring systems
- Winding hot spot monitoring
- Load tap changers
- High voltage transmission lines
- Research and development applications
- Any low / high voltage equipment applications
