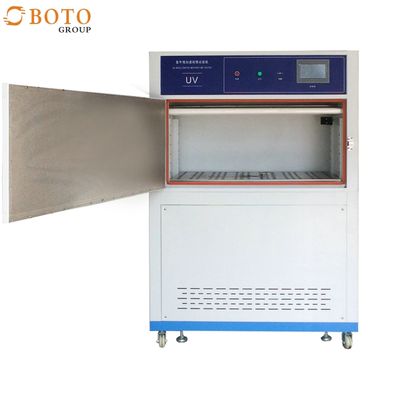

BOTO - Model BT-1021 -UV Accelerated Weathering Test Equipment

The main function

The UV-accelerated aging test chamber uses imported UVA-340 fluorescent UV light as a light source to simulate the damage caused by sunlight, rain and dew. The UV weatherproof box uses a fluorescent UV lamp to simulate the effect of sunlight, and uses condensed moisture to simulate dew.

The material to be tested is placed in a cyclical program of alternating light and moisture at a certain temperature to accelerate the weathering test of the material to obtain the weather resistance of the material. The UV box can reproduce the hazards of outdoor months or years in days or weeks. Types of hazards include: fading, discoloration, loss of light, powdering, cracking, turbidity, air bubbles, embrittlement, strength, decay, and oxidation. This machine contains a shower device.

Technical parameter

Model: BT-1021
Studio Size: W1150 X H400 x D400mm
Outside dimension: W1400 X H1450 x D650mm
Temperature range: RT+10~70°C
Temperature uniformity: ±2°C
Temperature fluctuation: ±0.5°C
Wavelength ultraviolet light: UV-A: 315-400nm;  UV-B: 280-315nm (8pcs, 1600h lifetime)
Testing time: 0~999H, adjustable
Materials: Inside and Outside SUS#304 stainless steel
Humidity range: ≥90%RH
Lamp power: 40W/Piece
Irradiance: 1.0W/m2
Distance from sample to lamp: 50±2mm (adjustable)
Power: 220V/50Hz /±10% 4.5KW
