QINSUN - Model SO 4892-1 -UV Accelerated Weathering Tester
UV aging tester/uv test UV aging box is independently developed and produced by our company Shanghai Qianshi Precision Electromechanical Technology Co., Ltd. It is equipped with imported lamp tube experimental equipment, which can meet the requirements of coatings, inks, adhesives, plastic products and other industries. , used to evaluate the weather resistance of plastic rubber, paint coatings, aluminum-plastic panels, automotive safety glass, and textile printing and dyeing materials.ISO 4892-1、 ASTM G151、 ASTM G154、 JIS D0205、 SAE J2020、 ASTM D3794、 ASTM D4587、 FED-STD-141B、 GM 9125P、 JIS K 5600-7-8、 ISO 11507、 ISO 20340、 M598-1990、 NACE TM-01-84、 NISSAN M0007、 PrEN 927-6、 JIS K 3750、ISO 4892-3、ANSI C57.12.28、 ANSI, A14.5、 ASTM D4329、 ASTM D4674、 ASTM D5208、 ASTM D6662、 DIN 53 384、 ISO 4892-3

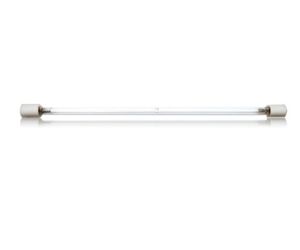

01. Light source: Lamp wavelength: UVA-340/UVB-313; Number of lamps: 8; Lamp power: 40W/piece;
02. Simulated environment: temperature, humidity, light, spray, condensation;
03. Temperature range: RT+10℃～70℃;
04. Humidity range: ≥95%R.H;
05. Temperature fluctuation: ≤±0.5℃;
06. Temperature uniformity: ≤±2℃;
07. Blackboard temperature: 40℃～65℃;
08. Distance between lamps: 35mm;
09. Test time: 1～9999S, M, H adjustable;
10. Number of samples: about 40 pieces;
11. Irradiance range: <50W/㎡.
