BOTO Group Ltd.
About

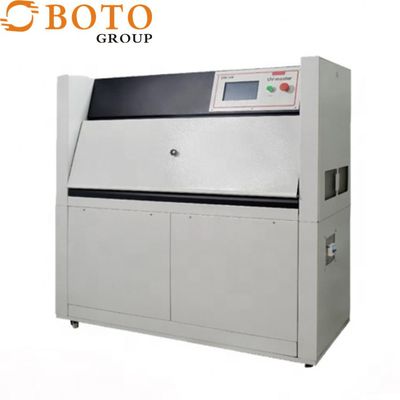

BOTO - Model B-ZW -UV Aging Test Chamber

SHARE
UV lamp weathering aging test chamber is the world's most widely used ,can be used in more labs throughout the world than any other accelerated weathering tester. It's used widely in the industry, such as printing ink, paint, pastics, print, packaging,motor van, metal, electron, medical, and so on.   Uv Weathering Test Machine ,simulates damaging effects of long term outdoor exposure of materials and coatings by exposing test samples to varying conditions of the most aggressive components of weathering - ultraviolet radiation, moisture and heat. A UV accelerated weathering chamber uses fluorecent lamps to provide a radiation spectrum centered in the ultraviolet wavelengths. Moisture is provided by forced condensation, and temperature is controlled by heaters.
Most popular related searches
test chamber
UV test chamber
UV accelerated weathering
accelerated weathering testing
weathering testing system
weathering testing
weathering test
machine simulation
ultraviolet lamp
water shortage

Standard:Common standard:ISO 4892-1 ,ASTM G151 ,ASTM G154 ,JISD0205• SAEJ2020

Paint Standard: ASTM D3794 ,ASTM D4587 ,FED-STD-141B ,GM 9125P • JIS K 5600-7-8 ,ISO 11507 ISO 20340 ,M598-1990 ,NACE TM-01-84 ,NISSAN M0007 ,PrEN 927-6

Adhesive glue Standard:

ASTM C1184 ,ASTM C1442 ,ASTM D904 ,ASTM D5215 ,UNE 104-281-88

Plastic Standard:

ISO4892-3 ,ANSIC57.12.28 ,ANSI,A14.5 ,ASTMD4329 ,ASTMD4674 ,ASTMD5208 ,ASTMD6662 ,

DIN 53384 ,JUI K 3750 ,UNE35.104

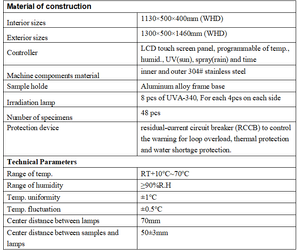

Material of construction


Interior sizes  :1130×500×400mm (WHD)
Exterior sizes:1300×500×1460mm (WHD)
Controller:LCD touch screen panel, programmable of temp., humid., UV(sun), spray(rain) and time

Machine compoments material:inner and outer 304# stainless steel

Sample holde:Aluminum alloy frame base
Irradiation lamp: 8 pcs of UVA-340, For each 4pcs on each side
Number of specimens:48 pcs
Protection device: residual-current circuit breaker (RCCB) to control the warning for loop overload, thermal protection and water shortage protection.

Technical Parameters


Range of temp.: RT+10℃~70℃
Range of humidity: ≥90%R.H
Temp. uniformity: ±1℃
Temp. fluctuation: ±0.5℃
Center distance between lamps: 70mm
Center distance between samples and lamps: 50±3mm
