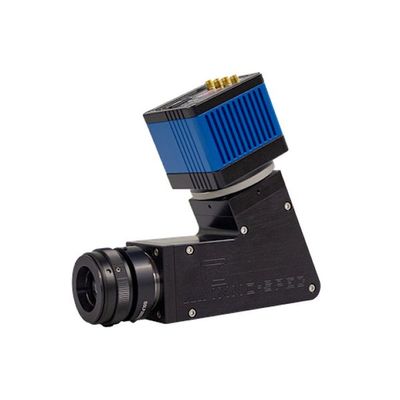

INNO-SPEC - Model BlueEye -UV Hyperspectral Camera
Frominno-spec GmbH
The BlueEye is a pushbroom HSI camera that expands the common spectral range to include UV and covers UV-A, UV-B and UV-C. This makes it especially suitable for applications in biotechnology, forensics and medical technology. With the possibility of using absorption or fluorescence as a measurement signal, the camera opens up new fields of application that go beyond NIR and VIS technologies. For example, it can detect invisible contamination on surfaces and is suitable for ingredient analysis and cellular diagnostics. Do you have questions or are you interested in this product? Contact us, we will be happy to advise you!
Most popular related searches
light sensor
forced air
hyperspectral camera
forensic
fluorescence monitoring
forensic biotechnology
VIS-NIR
biotechnology technology
contaminant detection
contamination monitoring
- 220 … 380 nm wavelength range
- back-illuminated CMOS sensor
- USB 3.1 interface
- Different cooling options available
- ~40 fps @ 2048 x 2048 pixels (max. sensor resolution with passive cooling)
- free of periodical calibration of optical path components
- Excellent optical imaging performance
- designed without moving mechanical parts
Spectograph
- Spectral range typ. : typ. 220 to 380 nm
- Dispersion : ~0.1 nm/px
- Spectral resolution : < 2 nm (with 80 μm slit)
- Smile : < 160 µm
- Keystone : < 20 µm
- F/# : 2.4
- Standard slit width : 80 μm (30, 50 & 100 μm available)
Operation Conditions
- Temperature (operating) : +10 °C to +40 °C
- Temperature (storage) : -10 °C to +60 °C
Electronics
- Sensor : Back-illuminated CMOS
- Sensor pixels : 2048 x 2048
- Active area : typ.1845 x 1500 (spatial x spectral pixels)
- Width : 6.5 µm x 6.5 µm
- Bit depth : 16 bit (2 x 12 bit ADC @ low & high gain)
- Frame rate : ~ 40 fps (full frame)
- Data interface : USB 3.1
- Power supply : USB 3.1 Type-C
- Sensor cooling : passive; forced air, liquid (optional)
Mechanics
- Dimensions lxwxh : 138 mm x 65 mm x 162 mm
- Weight : 1.4 kg
- Lens mount : standard C-mount
