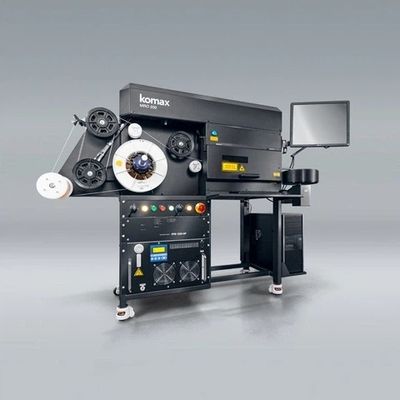

Komax - Model MRO 200 B/S/XS -UV Laser Wire Marking Machine
The MRO 200 B/S/XS is a UV laser wire marking machine, ideal for low to medium volume production with a perfect balance of efficiency, compactness, and cost-effectiveness. UV laser marking has long been the standard for wire identification in the aerospace industry. Komax has developed the MRO 200 series, a laser wire marking solution designed for small to medium-sized production runs and one-off jobs. It caters to the needs of aircraft maintenance, repair, and overhaul centers, offering a quick and responsive marking process. The MRO 200 is an ideal choice for users seeking cost control in wire marking. Apart from its competitive price, clients appreciate its user-friendly interface and robust construction, ensuring ease of use and high-quality performance.

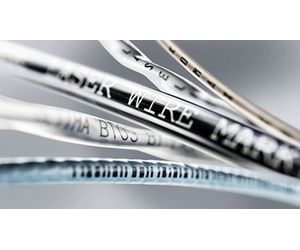

Clear, non-aggressive and permanent marking
UV laser marking provides safe, permanent identification with high contrast on UV-markable cables. It prevents alteration and eliminates risks associated with hot stamping.
With over 20 years of field approval and hundreds of delivered machines, the MRO 200 has established itself as the leading UV laser marking machine in the market.
High marking speed, optimized production, and intuitive software enhance productivity. Easy wire setup and automatic font change significantly enhance the machine's output.
High marking speed, optimized production, and intuitive software enhance productivity. Easy wire setup and automatic font change significantly enhance the machine's output.
The system offers high availability without external adjustments or daily maintenance. Test menus, coupled with remote maintenance software, enable quick and reliable diagnosis.
MRO 200 B/S/XS
Metric
- Wire length max.: 999000 mm
- Electrical connection: 220 AC (+/-10 VAC) – 20 A
- Electrical connection (optional): 208 V AC (+/-10 VAC) – Phase / Phase 20A
- Compressed-air connection: 6 bar
- Weight (approx.): 330 kg
- Length: 1560 mm
- Width: 710 mm
- Height (with safety cover closed): 1260 mm
- Humidity, non-condensing: < 80 %
- Ambient temperature: 15 - 32 °C
- Laser: UV laser
- Laser security: Mask, laser class 1
Imperial
- Wire length max.: 39331 in
- Electrical connection: 220 AC (+/-10 VAC) – 20 A
- Electrical connection (optional): 208 V AC (+/-10 VAC) – Phase / Phase 20A
- Compressed-air connection: 90 psi
- Weight (approx.): 727 lb
- Length: 61 in
- Width: 28 in
- Height (with safety cover closed): 50 in
- Humidity, non-condensing: < 80 %
- Ambient temperature: 59 - 90 °F
- Laser: UV laser
- Laser security: Mask, laser class 1
- Accepted diameters for cable cutting min.: AWG28
- Accepted diameters for cable cutting max.: AWG6 (AWG 4 in option)
- Accepted diameters for cable marking min.: AWG26
- Accepted diameters for cable marking max.: AWG6 (AWG4 in option)
