Height-LED - Model HTJP-II-SE45025-NH-8 -UV LED Curing Equipment for Coating and Printing Applications

SHARE

Height-LED specializes in producing UV LED curing equipment designed for applications in coating and printing processes. The machines leverage ultraviolet LED technology to efficiently initiate polymerization in inks, coatings, and adhesives, ensuring rapid drying and curing. Their product line includes various systems such as UVLED curing machines, ovens, area systems, spot systems, and linear systems, each tailored for specific industrial requirements. These systems ideally suit industries such as optical communication, precision optics, electronics, and the production of LCDs and touch screens. Furthermore, the incorporation of a water-cooling system demonstrates their commitment to efficient thermal management, improving performance and longevity of the equipment. Height-LED solutions are designed to optimize production lines, providing consistent and reliable results that enhance production throughput and product quality.

Most popular related searches
UV curing equipment
printing system
UV curing
water cooling
cooling system
water cooler
RoHS compliance
cooling water system
UV system
water control

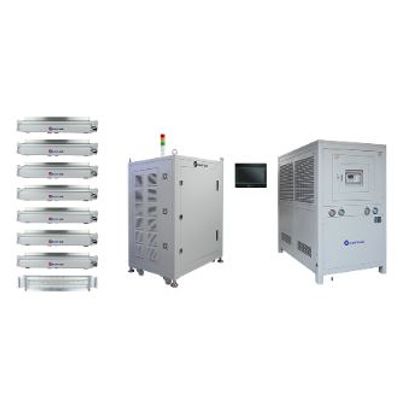

UVLED curing lamp Product Model：HTJP-II-SE45025-NH-8 Dimension：L1040mm*W800mm*H1780mm Wavelength：385nm Curing area：450mm * 25mm

  1. The equipment supports the light source current,voltage,temperature real-time monitoring function,when the light source is abnormal,UVLED curing lamp equipment alarm prompt,and automatically shut down the UVLED.
  2. The equipment supports external IO signal control,associated with the speed signal of the printing machine,light power with the speed of the printing machine automatically adjust.
  3. UVLED curing lamp equipment supports water cooler remote control,digital dimming,historical alarm information,irradiation time query and other functions.
  4. The equipment supports manual mode and automatic mode,manual mode:stand-alone debugging mode,do not need to be associated with the printing machine running signal independent operation,automatic mode:need to be associated with the printing machine signal,equipment and printing machine synchronous operation.
    II.Light source features
    1,green environmental protection
    UVLED curing lamp is RoHS compliant and does not contain mercury.
    2,long life
    UVLED has a long service life,reducing the investment cost of equipment.Ready to turn on and off,no preheating,UVLED curing lamp switch times do not affect the service life.
    3、High efficiency and energy saving
    UVLED output wavelength concentration,high photoelectric conversion rate,energy saving and power saving,fast curing speed,high production efficiency.
    4,wide range of applications
    UVLED is a cold light source,low infrared heat radiation,will not cause thermal stress and deformation of the work,suitable for curing of various types of heat-sensitive materials.
