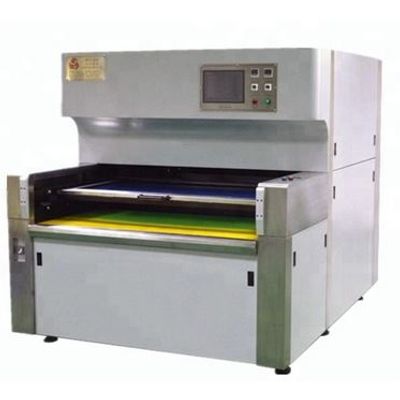

Kexin - Model HC-0968R2W -UV-LED Exposure Machine
Have photosensitive in double -face.design for single and double -face exposure Big frame , high precision,power saving Can.
Most popular related searches
- Have photosensitive in double -face.design for single and double -face exposure
- Big frame , high precision,power saving
- Can exposure Dry film /wet film / solder mask
Model: HC-0968R2W
light source type: UV-LED
Effective exposure size: 930*680 mm
Substrate thickness: 0.075-10 mm
Line resolution: 50/50 um
Exposure mode: Double exposure
Time of exposure : 10-35S
Suitable for : Dry film /wet film / solder mask
Exposure energy control: 0-100% adjustable / exposure time adjustable
cooling system : constant temperature water cooling
optical glass : Mylar +glass
vacuum degree: ≤ -90kap (adjustable)
power: 4.5kw
Machine size : 2450*1420*1700 mm
Machine weight: 900Kg
light source type: UV-LED
Effective exposure size: 930*680 mm
Substrate thickness: 0.075-10 mm
Line resolution: 50/50 um
Exposure mode: Double exposure
Time of exposure : 10-35S
Suitable for : Dry film /wet film / solder mask
Exposure energy control: 0-100% adjustable / exposure time adjustable
cooling system : constant temperature water cooling
optical glass : Mylar +glass
vacuum degree: ≤ -90kap (adjustable)
power: 4.5kw
Machine size : 2450*1420*1700 mm
Machine weight: 900Kg
