GenUV / Genicom - Model Genicom, MG-04 ...

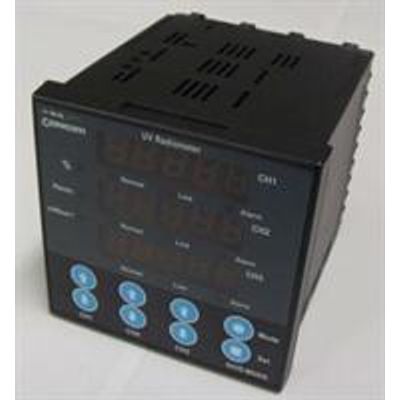

GenUV / Genicom - Model Genicom, MG-04 -UV Radiometer 4 : 3 channel UV meter

Place of Origin Daejeon, South Korea Brand Name Genicom Model Number MG-04 Usage Ray Sensor Theory Optical Sensor Output UV Radiometer MG-04 UV Radiometer 4

Most popular related searches

ultraviolet air purification

* Feature
- Fixing method : Panel Insertion
- Power : AC 200 ~ 240V (50/60Hz)
- Display
> Relative Power (%)
> Accumulative Time (Hours)
> Absolute Optical Power (mW/cm2)
> 3 Color LED (Green, Yellow, Red)
- Output
> Relay - 4-20 mA Current

* Specification
- Size : 96 mm X 96 mm X 111 mm
- Operating Tempatue
> Display : 0 ~ 50 C
> UV Sensor Probe : -30 ~ 85 C
- Cable length : 5 m (standard)
- Detection Range
> UVV : 230 ~ 395 nm
> UVA : 220 ~ 370 nm
> UVB : 220 ~ 320 nm
> UVC : 220 ~ 280 nm

* Model number description
- GUVC-T11GS4-3LW5.0 : MG-04 + LW5.0 Probe 3ea
- GUVC-T11GS4-3LW10 : MG-04 + LW10 Probe 3ea

* Application
- UV Purification (Water, Air)
- UV Curing
- UV Lamp/LED monitoring
