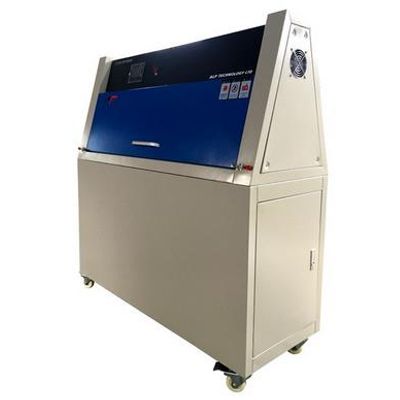

ALP - Model UV-P -UV Test Chamber
This series is applicable for the sunlight resistant test of nonmetallic materials and aging test of artificial light sources.
Chamber Structure
The inner bladder of the chamber is made of imported high-class stainless steel plate while the outer bladder is made of A3 steel plate sprayed with plastic.
The heating mode adopts inner bladder trough type heating with its rapid temperature rise and even temperature distribution.
Control System
Adopts black aluminum plate to connect temperature sensor and adopts black board temperature meter to control heating.
The radiometer probe is fixed so as to avoid the frequent installation and disassembly.
The radiation quantity adopts the special UV irradiatometer with high-precision display and measurement.
The radiation intensity is not more than 50W/m2.
The illumination and condensation can be controlled independently or alternatingly and circularly.
- Model: UV-P
- Workroom Dimensions (cm): 45*117*50
- Exterior Dimensions (cm): 58*128"135
- Power: 4.0(KW)
- Temperature Range: RT+10°C~70eC
- Humidity Range: >95%R.H
- Lamp Spacing: 35mm
- Distance between Sample and Lamp: 50mm
- Quantity of Samples Supported: 150mm (L) x 75mm (W). about 40 pes
- UV Wavelength: 290nm~400nm—UV-A, UV-B, UV-C (Subject to the specifications in order)
- Lamp Power: 40W
