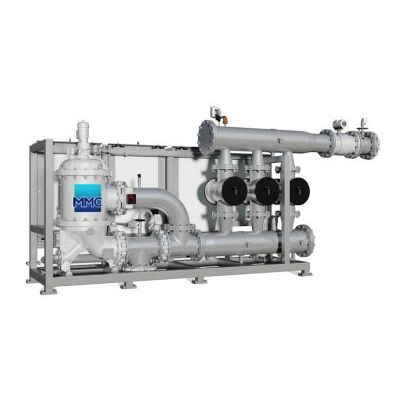

MMC - Model BWMS 450 m3/h -UV Water Filtration System for Maritime Applications

Filter: minimum flow 85 m3/h, maximum flow 500 m3/h. UV: three chambers in parallel, minimum flow 20 m3/h, maximum flow 450 m3/h. Power consumption UV: minimum 21,6 KW, maximum 40,5 KW. Skid footprint: 3500 mm x 1000 mm (L x B). Total height: 2170 mm. Skid can be tailor made to meet special requirements. System can be installed in separate components, especially relevant for retrofit.
