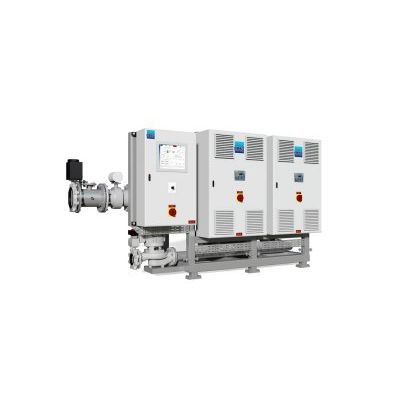

MMC - Model BWMS 300 m3/h -UV Water Treatment System for Maritime Applications

Filter: minimum flow 83 m3/h, maximum flow 370 m3/h. UV: two chambers in series, minimum flow 10 m3/h, maximum flow 150 m3/h. Power consumption UV: minimum 14,4 KW, maximum 27 KW. Skid footprint: 1870 mm x 800 mm (L x B). Total height: 1840 mm. Skid can be tailor made to meet special requirements. System can be installed in separate components, especially relevant for retrofit.
