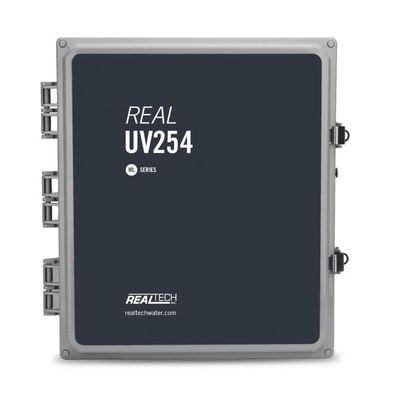

Real Tech - Model ML Series -UV254 Sensors
Real Tech’s bypass UV254 sensor provides affordable real-time measurement of organic matter in water or wastewater. The UV254 sensor utilizes light at the 254 nm and 550 nm wavelengths for organics monitoring. Designed to meet the needs of many monitoring applications, the ML series offers multiple flow cell designs and sensor path length selections for the desired measurement range.
- Affordable real-time UV254 organics monitoring
- Dual wavelength sensor (254 nm and 550 nm)
- Wastewater to high purity measurement ranges
- Bypass style sensor with multiple flow cell selections to meet application demands
- Operator friendly, low maintenance design
- Reagent free optical measurements
- Simple to install and operate
Real Tech’s bypass UV254 sensor is a cabinet style instrument installed directly on a wall, railing or system backboard. Sample is supplied to the sensor from a pressurized source or alternatively, from an open-channel using an accessory pumping/cleaning system. The sensor must be connected to a Real Tech controller for operation.

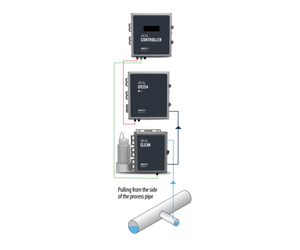

EXAMPLE CONFIGURATION
- Real Controller
For affordable, user friendly operation and control - UV254 Sensor
For real-time continuous UV254 organics measurement - Real Clean System
For low maintenance automatic cleaning
Multiple sensors can be added to Real Tech’s controllers to expand water quality monitoring capabilities.
Simple to install, easy to operate, no reagents and no waiting for lab results.
- Path Lengths: 0.5, 1, 2, 4, 10 mm (1000 series)
- 1, 2, 4, 8 mm (2000 series)
- 10 x 20 mm (3000 model)
- 50, 100, 150, 250 mm (4000 series)
- Parameters: UV254
- Range: Depends on model selected. Refer to range chart
- Units: cm-1
- Sampling Time: 10 seconds
- Calibration: Factory calibrated. Field adjustment of calibration is possible.
- Cleaning: In-situ cleaning makes cleaning quick and easy. Automatic chemical cleaning is optional.
- Self-Diagnostic: Detection and diagnosis of internal system fault
- Alarms: Dry contact terminals allow operator configurable alarms for:
- high and low set points, low lamp output, leak detected, system fault, etc.
- Humidity Control: Humidity sensor with large regeneratable desiccant system
- Wavelengths: 253.7 nm and 550 nm
- Light Source: Low-pressure mercury UV lamp and LED
- Lamp Life: 2 years (mercury UV lamp)
- Flow Rate: 500 - 1000 mL/min (1000 series)
- 300 - 1000 mL/min (2000, 3000 and 4000 series)
- Pressure Rating: 85 PSI maximum (1000 series)
- 20 PSI maximum (2000, 3000 and 4000 series)
- Fluid Connections: 3/8" OD tube push-in fittings (1000 series)
- 1/4" OD tube push-in fittings (2000, 3000 and 4000 series)
- Wetted Materials: Kynar, FEP, Quartz, SS316L, Viton (1000 series)
- Kynar, Polyethylene, Quartz, SS 316L, Viton (2000, 3000 and 4000 series)
- Electrical/Comm.: From controller
- Ambient Temp.: 0 to 45°C (32 to 113°F)
- Water Temp.: 0 to 90°C (32 to 194°F) at 21°C (69.8°F) Ambient temperature
- Enclosure: NEMA 4X, wall mountable
- Weight: 22 lb (1000, 3000 and 2000 series)
- 24 lb (4000 series)
- Dimensions: 17"H x 14.25"W x 7.5"D (1000, 2000 and 3000 series)
- 17.75"H x 15.5"W x 6.75"D (4000 series)
- Technology: Ortho-Beam (3000 model)
- Split-Sense Pro (1000, 2000 and 4000 series)
- Warranty: 2-year limited warranty (Extended care packages available)
* Technical Specifications are subject to change without notice.
* Water temperature range based on material compatibility only. Contact Real Tech to verify application
