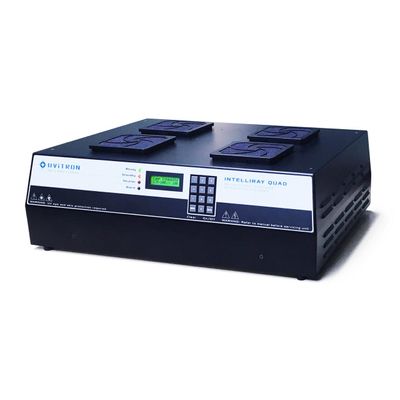

Uvitron - Model IntelliRay Quad -Large area UV Programmable Flood Curing System
The IntelliRay Quad is an advanced UV flood curing system designed to efficiently handle large area applications. It integrates all essential components into a single, compact unit that can be easily installed on a Rayven Quad benchtop UV chamber or directly into a factory setting. This system utilizes four long-life arc lamps in conjunction with parabolic reflectors to ensure even UV light distribution across a 16 x 12 inch curing area. Critical features include a retractable shade shutter for repeated exposure precision and user safety, a digital keypad for easy system control, and adjustable lamp intensity for versatility with different materials. The IntelliRay offers options such as foot pedal control for hands-free operation and varies its spectrum to include UVA, UVB, and visible wavelengths to suit a wide range of adhesive and coating applications. High reliability is ensured through a switch mode power supply and airflow cooling system, while enhanced lamp life minimizes operational costs, making it suitable for environments from testing labs to production lines.The IntelliRay Quad is a large area, programmable UV flood curing system. All system components are integrated into a single unit that can be easily mounted on the optional Rayven Quad benchtop UV curing chamber, or anywhere on a factory floor, with virtually no cabling or remote power boxes required. Just mount the lamp head, connect the AC line cord and start timed exposure curing.
The system contains an integrated retractable shade type shutter, which allows for repeatable exposure timing and shields the user from UV rays. The system’s LCD display and digital keypad make programming and monitoring of curing operations a snap. The four long-life arc lamps and parabolic reflectors illuminate a 16 x 12” curing area with evenly distributed UV light. The arc lamps are powered by the state-of-the-art UV Power-Plus Lamp Driver. For a compact version of this system, see the IntelliRay.
System timers: Duration of curing is controlled by a 1–9,999 second or hour exposure timer that actuates the shutter. The exposure timer also has a user-controlled manual mode and a mode for use in long exposure applications such as artificial aging or solar panel testing.
Lamp intensity control: The system has a user-adjustable intensity level. This feature provides the flexibility of choosing appropriate curing intensity for sensitive materials. You can password protect time, intensity and all other settings.
Standby mode: The unit automatically reduces lamp power when the shutter is closed. This reduces excessive heat and therefore increases the life of system components without the need to power down.
Status indicators: Four front panel LEDs are provided: lamp ready, system-in-standby mode, shutter open and system alarm.
External logic signal interface: The system can be monitored and controlled remotely using digital logic signals available at a 15 pin D-sub connector on the unit’s rear panel. The digital logic functions allow high-speed control of the IntelliRay for applications requiring a direct interface with machine controllers or PLCs.
Remote Control via PC serial port: The system can also be controlled remotely via an RS232 / RS485 serial port. A Windows™ compatible graphical interface program allows all system functions to be exercised (see photo), and with RS485, multiple units can be networked.
Lamp power regulation: The system’s switch mode power supply maintains constant lamp power regardless of variations in AC line input or lamp voltages. The result is repeatable curing times throughout the life of the lamp.
Forced air cooling: Variable speed cooling fans with removable filters direct air to critical system components, ensuring cool operation and high system reliability.
Best-in-class lamp life: The enhanced lamp life of the system rivals even microwave and LED systems, significantly lowering operating and maintenance costs.
Foot pedal control: An optional shutter control foot pedal is available for applications requiring hands-free operation. The pedal can be used in conjunction with the system’s exposure timer or in a manual mode, in which the shutter remains open as long as the pedal is pressed.
Optional lamp spectrums: The IntelliRay Quad is available with UVA, UVB and visible spectrum lamps, ensuring compatibility with adhesives and coatings from all manufacturers.
