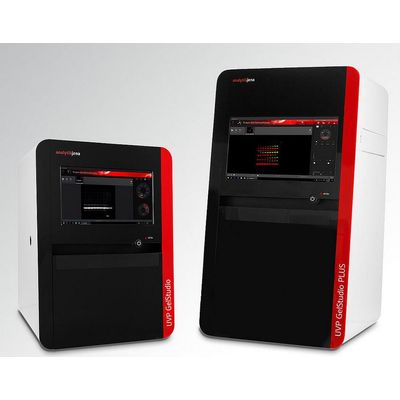

Analytik Jena - Model UVP GelStudio Series -UVP Gel Imaging Systems
The creators behind the UVP GelStudio imaging systems are renowned for delivering advanced solutions to genomic and proteomic applications. UVP GelStudio imagers offer high-resolution and sensitive imaging of DNA & protein gels. They also work with an unlimited range of excitable stains and dyes. All imagers run the powerful VisionWorks® Software, full package image capture, enhancement functions and analysis software. Application-based icons for automation, which are included in the software package, offer one-touch capture. The software allows for creating custom icons and workflows based on users’ needs. The UVP GelStudio guarantees top image quality and an optimized range of high performance features. With its high resolution camera, high dynamics and excitation ranges from 400 to 800 nm, this series introduces a new benchmark that goes far beyond publication-quality images.
- Integrated multi-touch computer, with large storage capacity, ideal for multitasking and viewing several images
- Wide maximum illuminated imaging area for imaging multiple gels of various sizes (up to 25 x 26 cm)
- Available with a unique "Slide2Hide" door which features smooth operation and limits bench top interferences
- Integrated UV Protection Shield, maximizes protection from UV radiation while working over the transilluminated surface
- Overhead white, red, green and blue LEDs included
- Five-position automated filter tray for easy access (Ethidium bromide filter included)
- Upgradeable to support UVP eLITE Light Source module, for excitation from 400 to 800 nm wavelength applications
- VisionWorks Software, with comprehensive features, optimizes image acquisition and analysis
- Fully networkable system that can connect over wireless network for simple transfer of files and data
- Imager for gel documentation in two different sizes
- Available as a touch screen controlled or as an external computer operated system
- High sensitivity camera and optics
- Pharma & Life Science
Specifications/features: UVP GelStudio
- Light sources
- Overhead: white, red, green and blue LEDs included
- Base lighting: Thin-Line Transilluminator, (302 nm) with High/Low intensity control
- Illuminated area: 16.8 x 21 cm
Five-position automated filter wheel
Filter wheel: Five-position automated filter wheel
- Darkroom features
- 13.3” integrated, multi-touch computer (UVP GelStudio touch only)
- Fold-down door
- Thin-Line Transilluminator in a pull-out tray
- UV On indicator light
- USB port (right side of unit)
- 6 additional USB ports (back side of unit)
- Access port for optional UVP eLITE Light Source
Accessories included
- Ethidium bromide filter
- VisionWorks Software for image capture,
- enhancement and analysis (unlimited licenses)
- Flash drive with VisionWorks Software (license free)
- UVP Fluorescent Focus Target
- UV Gel Tray
- UV Protection Shield
- Empty flash drive for data and image storage
- Keyboard and mouse (touch screen systems only)
- Dimensions (L x W x H): 41 x 46 x 61 cm (16 x 18 x 24 inch)
- Wireless network capability: Wireless network capable, Wi-Fi, accessory for wired-to-ethernet connection available
Light sources
- Overhead white, red, green and blue LEDs included
- Base lighting: Thin-Line Transilluminator, (302 nm) with High/Low intensity control
- Illuminated area: 25 x 26 cm
Filter wheel: Five-position automated filter wheel
Darkroom features
- 15.6” integrated, multi-touch computer (UVP GelStudio PLUS touch only)
- Slide2Hide door
- Thin-Line Transilluminator in a pull-out tray
- UV On indicator light
- USB port (right panel of unit)
- 6 additional USB ports (back side of unit)
- Access port for optional UVP eLITE Light Source
Accessories included
- Ethidium bromide filter
- VisionWorks® Software for image capture,
enhancement and analysis (unlimited licenses) - Flash drive with VisionWorks® Software (license free)
- UVP Fluorescent Focus Target
- UV Gel Tray
- Integrated UV Protection Shield
- Empty flash drive for data and image storage
- Keyboard and mouse (touch screen systems only)
Dimensions L x W x H: 43 x 47 x 82 cm (17 x 19 x 32 inch)
Wireless network capability: Wireless network capable, Wi-Fi, accessory for wired-to-ethernet connection available
