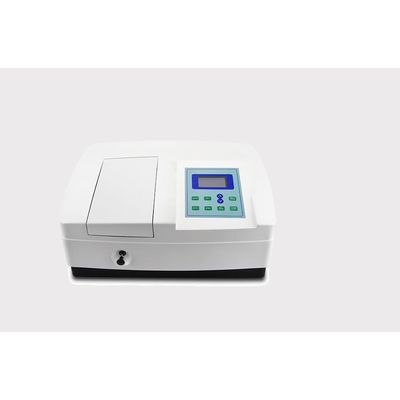

Metash - Model UV5100B -UVVisible Spectrophotometer

Low stray light

UV-5100B is made of high quality components with rigid structure which ensures low stray light.

Auto setting wavelength

Users can set wavelength automatically through arrow keys to avoid operation errors.

Stability and durability

UV-5100B users a rigid die-cast aluminum base as its optical mount to ensure instrument stability and reliability.

Data output

UV-5100B is equipped with USB port to connected with a PC to display spectrum scanning, kinetics and multi wavelength testing results on the screen. The software is optional.

Standard curve

UV-5100B can set up various standard curves according to customer`s solutions and find theconcentration of unknown solutions.

Multiple results readout

UV-5100B can display wavelength, absorption and transmittance with 5 results per screen. It also has a memory store of up to 200 results.

• Model: UV-5100B
• Optical System: Single beam, grating 1200 lines/mm
• Wavelength Range: 190-1000nm
• Bandwidth: 2nm
• Wavelength Accuracy: ±lnm
• Wavelength Repeatability: 0.2nm
• Wavelength Setting: Auto
• Photometric Accuracy: ±0.5%T
• Photometric Repeatability: <0.2%T
• Photometric Range: -0.3-3A. 0-200%T. 0-9999C
• Stray Light: <0.05%T@220. 360nm
• Stability: ±0.00 lAh (SSOOnrn
• Display: 128*64 LCD
• Detector: Silicon Photodiode
• Light Source: Tungsten Lamp & Deuterium Lamp
• Output: USB & Parallel Port (Printer)
• Power Requirements: AC 85-250V
• Dimension: 490*370"220mm
• Weight: 15kg
