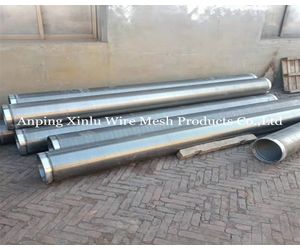

FY-XL - Model 032 -V Wire Johnson Well Strainer Pipe
V Wire Strainer Pipe water well screen, perfect roundness screen tube, profile wire screen pipe, wedge wire screen, wire wrapped screen, screen tube, screen pipe, sand control well screen, oil well screen, v wire slot screen, rod based continuous slot screen, wire wound stainless steel screen pipe, johnson well screens Wedge wire screen material: stainless steel, galvanized low-carbon steel, or as require Slot opening size: 0.1mm-15mm Diameter (inches): 2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 20, 29-1000mm Length: 2.9m, 5.85m. The maximum length is 6.05m Connection method: beveled, circumferential welded, threaded connection Based Pipe Material: API-compliant J55, K55, N80, stainless steel 304, low -carbon steel, or custom materials Screen diameter: 1.5inch / 38mm to 18inch / 457mm
Product Advantages of Johnson Well Strainer Pipe / Screen Tube:
1. Anti-Corrosion Sand Control Johnson Well Screen Pipe With Threaded for Groundwater
2. Selling point: High Strength, Anti-Corrosion, Easy Installation, Anti-Pressure, Rust resistant
3. Surface treatment: Pickling and polishing, Bright
4. Diameter: 2-1/2", 3", 4-1/2", 4-3/4", 6-5/8", 8-5/8", 10-3/4", 12-3/4", 14", 16",18", 20"
5. Slot size: 0.1mm, 0.2mm, 0.3mm, 0.4mm,0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm in usual, also can be others.
6. Length: 1m, 2m, 3m,10ft, 4m, 5m, 5.85m, 20ft (2.9m/2.95m, or 5.8m / 5.85mto fit container)
7. End connection: Plain beveled ends for butt welding, male/female threaded,Flange, Closed Up etc.
8. Material: Low Carbon, Low Carbon Galvanized steel (LCG),Stainless Steel( 304,etc.), Duplex Stainless Steel, 904L etc.
9. Well deep: v / wedge wire: 2.5x4mm Well deep: 200-300m,
v / wedge wire: 3x4.6mm Well deep: 350-450m
v / wedge wire: 3.3x6.5mm Well deep: 500-650m
