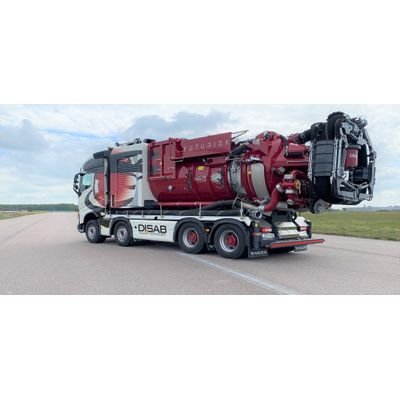

Disab Futurion - Model Q20 MultiFLEX -Vacloader
This vacloader has a modern design to it and an easy to operate control system including a telematic alarm system feature. It has a reduced noise level and its design provides great service accessibility. It has great flexibility for different applications with multiple add-ons available. It is equipped with the excavator boom, DISAB MultiFLEX™, making it possible to excavating deep down in the ground. Its suck and blow features and round tank design makes it suitable for wet and dry applications and it’s often used in following industries: contractor equipment, landscaping, municipality etc.
Most popular related searches
mobile vacuum system
vacuum pump
vacloader
cartridge filter
steel tank
cooling air filter
stainless steel tank
cartridge air filter
air filter cartridge
hydraulic cylinder
- Suction
- Blow
- Transport(ADR)
- Discharge: By tipping the tank or unloading through blow system
- Dry materials
- Wet materials
- Indoor
- Outdoor
- Vacuum pump: Twisted three-lobe roots pump
- Max vacuum, mbar: 900
- Max overpressure, mbar: 1,000
- Air volume m3/h (unloaded): 8,500 / 11,000
- Operation speed (rpm): 2,600 / 2,000
- Power: 210 / 280
- Voltage Frequency, V/Hz: N/A
- Tank volume (m3)*: 10 / 12
- Total tank volume: 12,7 / 14,7 m3
- Power source: Truck powered
- Engine type: N/A
- Tank material: Carbon steel / stainless steel / acid-proof steel
- Tank tipping: Hydraulic front cylinder, double acting system. Tailgate is hydraulically operated and locked.
- Main filter system (m2): 70 galvanized/stainless cages with filter socks in needled polyester glazed surface. Filter area is 26 m2
- Safety filter surface(m2): 50
- Cooling air: Cartridge filter
- Atex: N/A
- Complete unit (including chassis): 25,500kg
- Total unit length including tuck chassis: 10,700mm
- Total width: 2,550mm
- Height (incl. hose boom): 3,900mm
