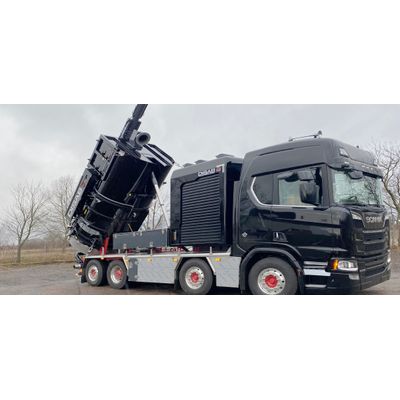

Disab Futurion - Model Q10 -Vacloader
This vacloader has a modern design to it and an easy to operate control system including a telematic alarm system feature. It has a reduced noise level and its design provides great service accessibility. It has great flexibility for different applications with multiple add-ons available. It is equipped with a suction only feature and its round tank design makes it suitable for wet and dry applications and it’s often used in following industries: cement, steel, paper & pulp, energy etc.
Most popular related searches
mobile vacuum system
stainless steel tank
vacuum pump
vacloader
cooling air filter
cartridge filter
steel tank
cartridge air filter
air filter cartridge
hydraulic cylinder
- Suction
- Blow
- Transport(ADR)
- Discharge: By tipping the tank
- Dry materials
- Wet materials
- Indoor
- Outdoor
- Vacuum pump: Twisted three-lobe roots pump
- Max vacuum, mbar: 900
- Max overpressure, mbar: N/A
- Air volume m3/h (unloaded): 8 500 / 11 000
- Operation speed (rpm): 2 600 / 2 000
- Power: 210 / 280
- Voltage Frequency, V/Hz: N/A
- Tank volume (m3)*: 10 / 12 / 14
- Total tank volume: 12,7 / 14,7 / 16,7m3
- Power source: Truck powered
- Engine type: N/A
- Tank material: Carbon steel / stainless steel
- Tank tipping: Hydraulic front cylinder, double acting system. Tailgate is hydraulically operated and locked.
- Main filter system (m2): 70 galvanized/stainless cages with filter socks in needled polyester glazed surface. Filter area is 26 m2
- Safety filter surface(m2): 50
- Cooling air: Cartridge filter
- Atex: On request
- Complete unit (including chassis): 19 000kg
- Total unit length including tuck chassis: 9 400mm
- Total width: 2 550mm
- Height (incl. hose boom): 3 900mm
