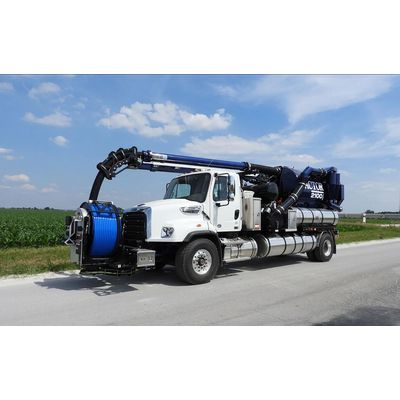

Vactor - Model 2100i -Combination Sewer Cleaner

Its many features include:

• IntuiTouch® one-touch in-cab controls for PTO/Transfer Case activation at the touch of a button
• IntuiTouch control panel that combines all cleaning system functions into one, articulating control panel
• The optional RDB 1015™ Rapid Deployment Boom telescopes out 10’ and extends the debris hose down 15’ eliminating the need for additional tubes
• Patent pending H.A.L.O.™ (Hands-Free Accessory Light Option) brings a new level of safety and efficiency to every job site
• Low maintenance Jet Rodder® Water Pump provides smooth continuous flows and optional “jackhammer” action
• Optional wireless controls, including an updated belly pack and handheld remotes with two-way data transmission and multiple control functions
• Multi-Flow system offers operation at lower RPM for better fuel economy without sacrificing performance, less component wear, and greater product life
• Modul-Flex design provides for maximum capacities and optimum weight distribution on every truck
• Quieter engine design, high ground clearance, lower water fill point, and other features to improve the operator experience
• High-strength aluminum water tank maximizes capacity and comes with a 10-year corrosion resistance warranty
• Choose from a Positive Displacement model for pulling material long distances or Single and Dual Fan models for all-around sanitary and storm sewer cleaning
• Choose from over 100 precision-engineered enhancements to fully customize your 2100i

at all operator control stations that, when engaged, will simultaneously disable the Jet Rodder pump and all hydraulic functions, relieve the system vacuum, and bring the chassis to idle; this allows the operator to address the unsafe condition and quickly return to work.

Available in Fan and PD Configurations
The new fan and air-routing system delivers significantly increased vacuum pressure in both the single-stage and dual-stage fan configurations. It can also be produced with a power positive displacement blower.

Ease of Operation and Maintenance
The design and ergonomic controls on the Vactor 2100 Plus sewer cleaner make it easier to operate, providing an all-around command of the work area. And everything the operator needs to clean sewers is centrally located at the front of the sewer cleaner as well as a convenient side operation station for maximum productivity and efficiency. The hose reel and controls are located at the front of the unit for increased productivity and safety.  In addition, the rotating hose reel creates a flexible, expansive work area that works in combination with the 180 degree rotating vacuum boom.

Exclusive Vactor Jet Rodder® Single Piston Water Pump

The dual action, single piston Vactor Jet Rodder® water pump is now available with up to 3,000 PSI. This is the only pump designed exclusively for sewer cleaning with "Jack Hammer" obstruction breaking operation. With pump options available up to 3,000 PSI, customers can have additional capabilities of high pressure if needed. How the Jet Rodder pump works:

• The single piston dual acting water pump is designed to be driven hydraulically, and contains only 5 moving parts.
• The pump’s simple design has a hydraulic cylinder on one side of a sealed center block and a water cylinder on the other side. A single shaft with specially constructed piston heads is slowly driven back and forth.
• The pump is constantly loading and expelling hydraulic oil and is constantly loading and expelling water.
• The Jet Rodder pump comes with an unconditional 30 minute run-dry certification.
