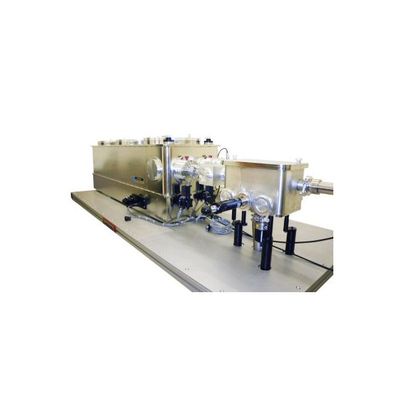

McPherson - Model 209V -Vacuum Compatible High Resolution Czerny-Turner Monochromator
FromMcPherson
This instrument offers all of our great features and options: a wide variety of patented SNAP IN diffraction gratings, efficient broadband reflective coatings, and master polished optics. McPherson Czerny-Turner instruments with focal lengths greater than 0.67-meters allow you to use larger 120-mm x 140-mm grating or a 110-mm x 110-mm grating. The large grating offers almost 40% more area, achieving a faster f/number, and more throughput. In these models the grating can also rotate through an auxiliary 20° for extension of wavelength range. For the 1200-g/mm grating the high wavelength changes from 1300-nm to 1575-nm (more than 20% extra wavelength coverage!).
Most popular related searches
Czerny-Turner monochromator
monochromator
sealing system
UV-VIS
spectrometer
spectrometer design
clean construction
spectroscopy
optical instrument
- Best Resolution in the ~105-nm to IR Range
- Scanning, Imaging and CCD Array Spectroscopy
- Clean Stainless Steel Construction
- O-ring sealed systems achieve 10^-6 torr vacuum
- Optional Ultra High Vacuum (UHV) metal sealed versions for 10^-10 torr
- High Efficiency Broadband Al+MgF2 Coatings
- Optical Design: McPherson Model 209 1.33-meter focal length f/9.4 Monochromator
- Focal Length: 1.33-meter, Czerny Turner design Spectrometer with Patented "Snap-In" gratings
- Aperture Ratio: 9.4 (11.6 with smaller grating)

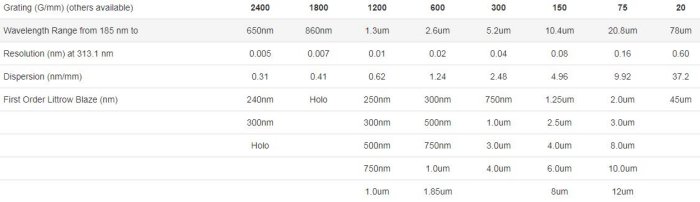

- Wavelength Range: refer to grating of interest for range, in extended position increase top limit 20%
- Wavelength Accuracy: +/-0.05 nm (with 1200 G/mm grating)
- Wavelength Reproducibility: +/- 0.005 nm (with 1200 G/mm grating)
- Grating Size: 120 x 140-mm (or 110 x 110-mm) - Echelle gratings up to 220-mm wide
- Slit Locations: Axial and lateral with optional extra entrance and exit port selection mirrors
- Focal Plane: 50-mm maximum width, multiply dispersion by the width of your detector for range
