McPherson - Vacuum Compatible Silicon Photodiode Detector
FromMcPherson

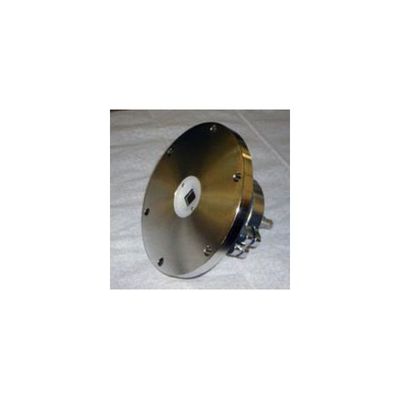

Silicon photodiode detector is Nitrided, has response from visible region to more than 1000eV, and has 10x10mm sensitive area. Vacuum ultraviolet Silicon diode detector assembly is complete with isolated BNC coaxial connector in ISO NW40-KF mounting flange. Assembly features flange fitting McPherson slit assemblies with five inch outer diameter and clearance holes for 1/4-20 thread, 6 places on 4.5” bolt circle (equally spaced.) Optional items include NIST Calibration, amplifier for Voltage readout, please inquire.
Most popular related searches
- Large 10*10mm area
- Sensitive from 1 to 1000nm
- Isolated BNC signal output
- Easy NW40KF or McPherson flange mounting
- Ideal for electron detection
- Large detection area
- 100% internal QE
- Detector: Nitrided Silicon Diode
- Wavelength range: 1 to 1000 nanometers
- Operation: CW
- Signal Output: Isolated BNC
- Amplifier: sold separate
- Requires: Vacuum 10E-4 torr or lower
- Size: approximately cylindrical, 5" diameter x 4" long
- Weight: 1 lbs

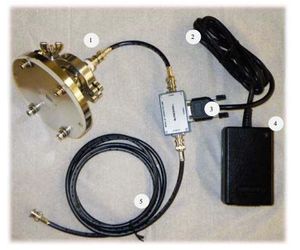

- Silicon photodiode with NW40KF interface in vacuum housing fitting McPherson 5” OD slit assemblies. Signal output via isolated BNC connector.
- Stub cable; short length interconnects detector and amplifier (BNC to BNC)
- Amplifier with Input, Output and D connector for power input
- Pre amplifier power supply
- Signal output cable (6’, BNC to BNC)
