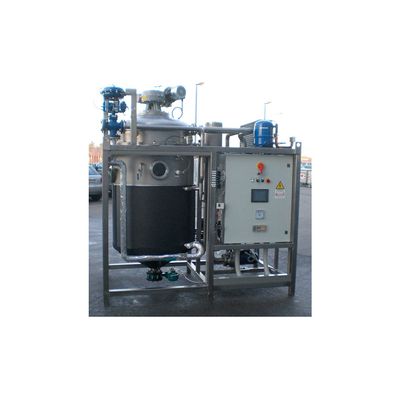

PF10 - Model ETR W Series -Vacuum Evaporator

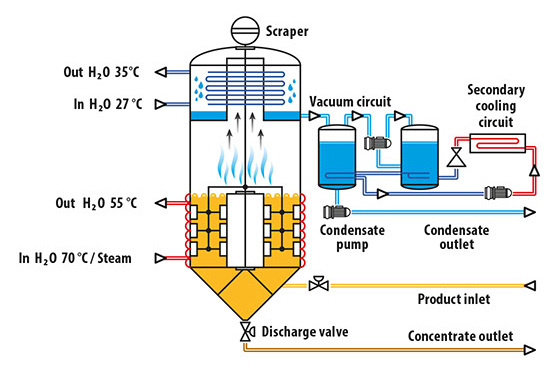

Among the vacuum evaporators/concentrators that exploit thermal energy powered by hot water or steam (or diathermic oil) during the first evaporation stage, the ETR W model has been developed to obtain more concentrated waste and to treat encrusting solutions. The employment of an automatic scraper, that keeps the exchange surfaces of the vertical tank clean, allows to obtain thicker concentrates than the ones got through other evaporation systems. The concentrate can be discharged either with a membrane pump or through a butterfly valve.
