Flovac - Vacuum Interface Valve

Once 40 liters (10 gallons) enters the pit from the gravity line, air pressure on the valves controller will trigger the valve to open allowing sewage and then air to enter the vacuum mains at a velocity of 4-6 meters per second (15-18 feet per second). It is the expanding air that propels the sewage to the VPS (the point of stronger negative pressure). No power is required at the collection pit.

The production of the Flovac Vacuum Interface Valve occurs in our main production facility in The Netherlands. Our main facility has ISO 9001:2008 certification and ensures that the valve complies with all relevant standards including the European standard EN 1091 and the Australian standard AS 4310.

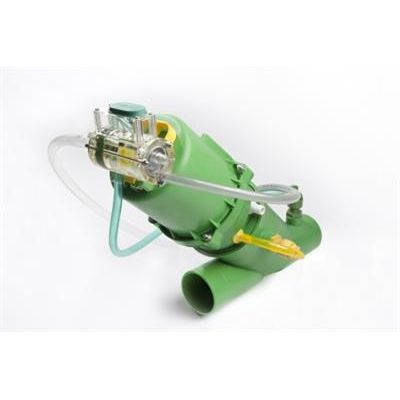

The Flovac Vacuum Interface Valve has three main components: the valve bottom section, the valve top section and the controller.

MORE THAN 3 INCHES
The development of the valve involved a number of system operators from around the world who discussed improvements that they would like to see to existing valve technology.

Although the valve is 75 mm (3 inch), the internal diameter in past valves has been somewhat smaller. One of the key changes that operators requested was to see an increase to the internal diameter of the valve to reduce blockages occurring. The Flovac valve has an internal diameter of 78 mm or 3.07 inches, so is more than 3 inches

250,000 cycle test and 1.000,000 cycle test
To meet the standards in various countries the interface valve is required to do a 250,000 cycle test. This was completed in 2006 at the University of Wroclaw in Poland, close to one of our key R&D centers and the valve and controller parts showed no sign of wear.

In one of our more active systems in Perth in Western Australia the Flovac valve had by 2011 completed over 1,000,000 cycles with no parts replaced and operators reporting no loss of service during that time. The average valve usually does 80 cycles per day or 30,000 cycles per year. The 1 million cycles represents over 33 years of normal use.

• 78mm ( 3.07”) Internal diameter
• Lower housing spigots with hose barbs to ensure tight correct fit of hoses
• Standard rebuild components compatible with a number of other competitor parts
• “Easy Clip” for holding controller firmly to valve
• Unique 3 bolt design on controller for uniform assembly tension and easy assembly
• Colour co-ordinated tubing and connections for easier field connections
• Stronger fusion welded insert ring reducing impact of water hammer
• Highly visible in flooded conditions
• Easy unscrewable thread for access to lower body
• Simplified one-way pins eliminating incorrect controller assembly
