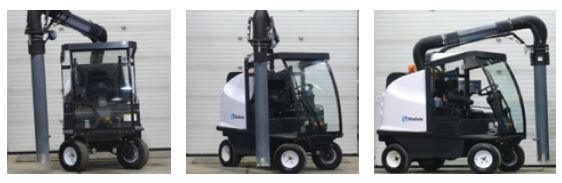

Madvac - Model LR50 -Vacuum Litter Collector with Robotic Arm
Madvac LR50 Vacuum Litter Collector with Robotic Arm: Only fully robotic arm on the market, simple operation eliminating fatigue with 270-degree arm movement. Intuitive arm control via 6-position joystick for effortless use. High operator seating and cab offering protection from the elements. Street legal Lighting package. Wander hose collects litter up to 15 feet way. 8` Wide vacuum head option. CNG engine option available.
Protect Your Environment
- The high profile Madvac LR50 will show your citizens and businesses the commitment to clean and maintain litter in your environment.
Innovative Ergonomics
- Ergo Design Vacuum with Multi‑Directional Joystick Control
- Six position joystick for effortless use.
- High Operation Seating for Safety and Visibility
- Full Instrumentation
- Operator friendly control panel gauges.
Industry‑Leading Performance
- Up to 12 mph (19km/h) Road Speed
- Faster and greater area coverage.
- Front Wheel Drive
- 20” (508 mm) drive wheels climb 7” (178 mm) curbs with ease.
- 2900 CFM Vacuum Rating (82.12 CMM)
- Industry leading vacuum picks up the heaviest litter!
- On and Off Road
- Access litter on grass areas, ground, asphalt and concrete.
- Unequalled Suction
- Unrestricted airflow due to 2‑stage litter and dust filtration.
- All Welded Heavy Gauge Structural Steel Frame
- Built to last.
Efficient, Fast Collection
- Vacuum Compacts Litter 2:1 Ratio
- Resulting in 100‑120 gallons (378‑454 L) into a single heavy‑duty disposable / re‑usable bag. Due to its straight‑through suction system, litter is easily collected up to 6 times faster than manual litter picking.
- Advanced 2 micron dust filtration (option)
- Keeps you, pedestrians and your environment clean.
Engineered for Greater Productivity
- 48” (1.2 m) Wide Vacuum Head (option)
- Cleans 105,00 sq.ft. (14,000 m2)/per hr.
- Robotic Power Arm
- Makes litter picking effortless and injury free.

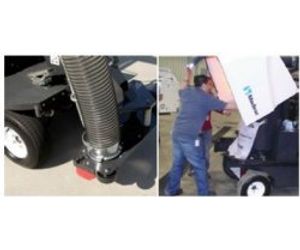

- Bagless Debris System (option)
- Offers choice of off‑the‑shelf standard garbage bag or re‑usable collector bag for easy 30 sec. bag changes.
- 15 ft. (4.5 m) Extension Hose (option)
- Permits litter retrieval in hard‑to reach areas.
- 4 Wheel Configuration
- 85” (2.2 m) overall length allows access to clean areas that are unreachable by other machines.

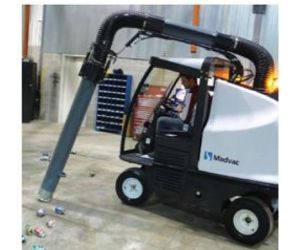

LEFT: The ergonomic, 6‑position robotic joystick‑controlled vacuum arm results in productivity 6 times faster than a manual picker. It’s “Turn on a Dime” turning radius allows fast and safe maneuvers in any environment.
For vacuum litter collecting sidewalks, walkways, plazas, public markets, alleyways and other areas with high pedestrian traffic, there’s nothing quite like the LR50! The Madvac LR50 litter collector is used worldwide because: It works. It lasts. It pays for itself. Fast!
Efficient Cleaning
Expertly designed to meet the cleaning challenges of today’s busy streets, the Madvac LR50 is a high profile, cost‑efficient cleaning machine that safely and effectively cleans city sidewalks, parks and streets. It even gets into confined, hard‑to‑reach places.
Exclusive Robotic Vacuum Arm
- Robotic Vacuum Arm
- Easier operation eliminating fatigue and potential for workers’ compensation claims.
- 270‑Degree Arm Movement with 24 sq.ft. (2.2 m3) Working Area
- Industry‑leading accessibility to litter.
Safety Comes First
- R.O.P.S. Roll Over Protection System
- Provides extra measure of safety.
- 340 Degree Rear Visibility
- Lessens chance for serious accidents.
- Cab Enclosure with Heater (option)
- Keeps you dry and comfortable.
- Heavy‑Duty Coil Spring Rear Suspension
- Means more comfort, better traction and a safer ride.
- Complete Road Lighting and Signaling Package (option)
- It’s street legal.
- All‑Wheel Drive (option)
- The first and only true off‑road litter collector.
Protect your Environment
- Noise Suppression Pack (option)
- Only machine that quietly meets OSHA noise standards for continuous 8‑hour shifts.
- Plastic bottles no longer a public eyesore!
Capacities
- Fuel Tank: 10.2 gal. (39 L ) ‑ 15 hours autonomy
- Hydraulic System: 12.5 gal. (48 L)
- Litter Capacity: 100 – 120 gal. (378 L – 454 L)
Engine Data
- Model: Kubota Diesel D1105‑E3B
- Displacement: 68.53 cu in, (1123 cc)
- Gross Rated Power: 24.8 hp (18.5 kW) @ 3000 rpm
- Legislation Compliance: EPA Tier 4
- Air Cleaner: 2 stage Donaldson with restriction indicator
Litter Collection System
- Type: “Flow through” system with 2 to 1 compaction ratio, with reusable fibrous polypropylene bags
- Container Construction: 16 gauge powder‑coated steel
- Vacuum Hose 8 in. (203 mm), joystick controlled
Frame/Body
- Heavy gauge steel body on a welded ¼ in. structural steel frame
- Storage compartment
- Electrostatic powder‑coated paint
Dimensions
- Width: 48 in. (1219 mm)
- Length: 84 in. (2133 mm)
- Height: 96 in. (2438 mm)
- Wheelbase: 63 in. (1600 mm)
- Ground Clearance: 8 in. (203 mm)
Vacuum System
- Vacuum Rating: 2,900 CFM (82.12 CMM)
- Air Flow Speed: 8,400 ft./min (237.8/M/Min)
- Static Pressure @ Closed Inlet: 30 in. of water gauge (7.472 kPa)
Controls
- Steering: Automotive type, power assisted
- Drive System: Heavy duty hydrostatic
Traction
- Drive: Front wheel drive, optional four‑wheel drive
- Maximum Forward Speed: 12 mph (19 km/h)
- Tire: 20.5 x 8.0 – 10; 4 ply
- Brakes:
- Hydrostatic front brake
- Rear mechanical disc parking brake
- Curb Weight 2770 lbs (1256 Kg) including options
Suspension
- Front: Multi‑layer transverse, beam axle leaf springs with torsion bars
- Rear: Heady‑duty shocks & springs
