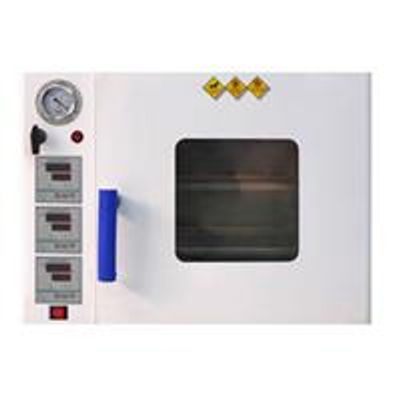

Morningtest - Model MT -Vacuum Oven
Vacuum ovens are used for drying sensitive substances that may be damaged by excessive heat, and for applications that require extremely low residual moisture levels.
Description
Vacuum ovens are used for drying sensitive substances that may be damaged by excessive heat, and for applications that require extremely low residual moisture levels. It also can rush into inert gas to the internal, especially of some compound material can also be quickly drying.
Vacuum dry oven is suitable for the universities and colleges, scientific research, factories and mines, under the condition of vacuum to drying, heat treatment. Reduces the drying temperature, avoid some items heating oxidation, clean grain of destruction.
Standard Features
- Interior stainless steel plate (sus#304)
- Exterior cold-roll steel sheets with static powder coating spraying
- 3 levels shelves, aluminum plates
- Every aluminum plate makes effective contact with the heater element, finally to make the test specimen get the most optimized heat transmission. Every aluminum plate could set different temperature (Total 3 levels) so that different test specimen could get different temperature requirement
- High quality fiberglass insulation
- Welded structural base frame with removable service panels
- Dual silicone one-piece door gaskets with vulcanized corners to maintain high vacuum degree inside the chamber
- Tempering double layer anti-explosion glass door
- High precision PT100 temperature sensor
- Digital display temperature controller
- Over temperature alarm and timing function
- Microcomputer PID control technology
- Every vacuum oven must make 24 hours air leakage test
Optional Accessories
- LCD display temperature controller
- Interior material galvanized sheet for saving cost
- Additional temperature protection for test specimen
- Vacuum pump
Note：
This model is used for routine experiments and tests, and cost effective. It supplied for Health, Medicine, Biology, Agriculture, Research etc. relative institution and department to make powder drying, sterilization and disinfection of different glass container, heat treatment and heating, but not suitable for volatile, flammable and explosive products.
