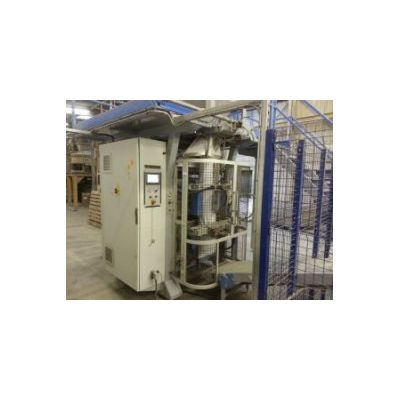

RM Group - Model FFS -Vacuum Packing Machine
RMGroup are proud to present an innovative packaging solution to the cementitious packaging industry. The Vertical form fill and seal vacuum packaging machine uses flat film on a reel to produce a waterproof bag suitable for cement, powder & food products. Before the bag is sealed the deaeration system expels air out of the bag to create a vacuum with block bottom bag. RM Group are proud to present an innovative packing solution for the cementitious packaging industry. The vertical form, fill and seal vacuum system uses a flat film on a reel to produce a waterproof
- Capable of producing 6 bags per minute.
- Suitable for cementitious products and other powdered products alike.
- Vast cost savings on packaging: Valve sacks can cost in excess of 25p per bag as opposed to cost of a flat film bag at less than 10p per bag.
- Polyethylene bag is not affected by any form of moisture, unlike paper bags.
- Substantially cost savings on capital expenditure.
- Less moving parts, less consumables, and therefore lower maintenance costs.
- Reduced environmental impact.
- Full UK support and sales department
- Bag micro perforation not required.
- Sack produced is clean and dust free.
Our vertical FFS machinery utilise a flat film reel in order to create a pillow or gusseted bag. The Film is shaped around the feed tube by a Shoulder which is then pulled downwards by movable rubberized belt pulling units, fixed on either side of the tube. The pulling action is done by Servo Motors. The duration of the rotation can be given with the help of a variable cam or PLC System, which will increase or decrease the length of the tube from. However to vary the width of the pack, the whole shoulder tube assembly has to be changed. This can be done in a very reasonable time. As soon as the tube length reaches its preset length the vacuum system extracts air out of the bag. The bag is then sealed horizontally, leaving a watertight bag ready for palletising.
