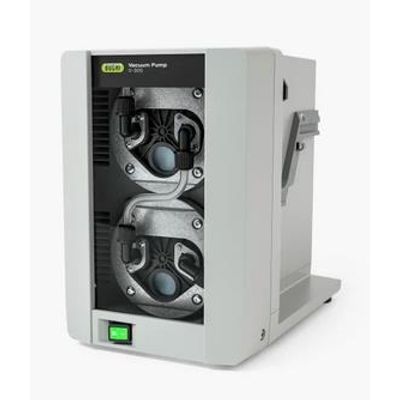

BUCHI - Model V-300 / V-600 - Vacuum Pump

Reliable pressure control for consistent distillations. The Vacuum Pump V-300 / V-600 is an essential system component for reliable pressure control for consistent distillations. Benefit from quiet, eco-friendly operations and the ability to distill solvents of any volume and with any boiling point.

Most popular related searches

Products Details

Final vacuum: 5 mbar (V-300), 1.5 mbar (V-600)
Noise level: 32 – 57 dB(A) (V-300), 40 – 64 dBA (V-600)
Vacuum capacity: 1.8 m3/h (V-300), 3.4 m3/h (V-600)

Key Facts

If noise levels are a problem in your lab space, discover the quiet operation of Vacuum Pump V-300 / V-600 made possible by a speed regulation function. Save time through unattended operation when you combine the vacuum pump with Interface I-300 / I-300 Pro with a level sensor for the secondary condenser. The level sensor alerts you if the risk of potential overflow of the receiving flask arises, for superior sample safety.

Reliable

We have only used material of the highest quality to guarantee the high chemical resistance of the Vacuum Pump V-300 / V-600. You can combine the vacuum pump with Interface I-300 / I-300 Pro for speed-controlled operation that helps extend the lifetime of the instrument and makes your workflow smoother and safer. Facilitate maintenance by easily viewing condensate and particles through the transparent front panel of the Vacuum Pump V-300 / V-600, while maintaining reliable pressure control for consistent distillations.

Extendable

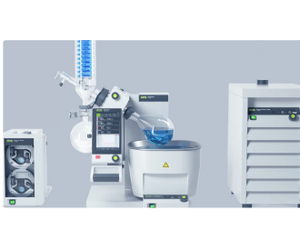

The Vacuum Pump V-300 / V-600 enables you to adapt your distillations to your needs thanks to a seamless plug&play integration with the BUCHI Interface I-300 / I-300 Pro for automated speed control and the BUCHI Rotavapor® R-300 for full automation of all process parameters.

Features

Decrease contamination

When connected to the interface, the speed control mode of the Vacuum Pump ensures pressure levels are held uniformly. This not only minimizes the risk of bumping, it also reduces noise emission significantly and extends the lifetime of the pump.

Reduce noise levels

Thanks to speed-control, the pump operates smoothly to maintain the set vacuum. This results in very low noise emission (as low as 32 dB) and a more comfortable working environment.

Eliminate bumping

You can directly see any condensed solvents or particles through a transparent inspection window to facilitate the maintenance of your vacuum pump.

Protect yourself and the environment

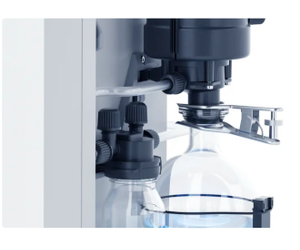

A secondary condenser prevents solvent that is sucked into the vacuum pump from being released into the environment. This condenser is beneficial for cases where low boiling solvents are used or when pressure values are set too aggressively.

Directly see the condensation status

You can directly see any condensed solvents or particles through a transparent inspection window to facilitate the maintenance of your vacuum pump.

Save energy

When not connected to the interface, the pump automatically switches to power savings mode after a given time interval has passed. This leads to substantial energy and cost savings.
