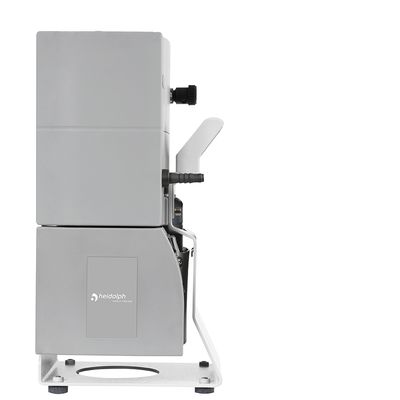

Hei-VAC - Model 20 - Vacuum pumps

Hei-VAC - Model 20 -Vacuum pumps

FromHeidolph Instruments GmbH & Co. KG

SHARE

For all Hei-VAP Industrial models. Includes secondary condenser and air intake separation vessel. This vacuum system can be applied in many different fields in order to evacuate, evaporate and pump out gases and vapors. Thanks to the emission condenser it is possible to achieve a chemical recovery of almost 100%.

Most popular related searches

condensate separator

condensate recovery

vapor emissions

For evacuating, evaporating and pumping away gases and vapors
The pressure-side emission condenser enables almost 100 %recovery of solvents
Excellent chemical and condensate compatibility
Very low end vacuum of 2 mbar, very quiet, low-vibration operation
Particularly high intake capacity of 3.0 m³/h
Weight 19.9 kg,
W / D /H 275 × 350 × 495 mm

Diaphragm pump: yes
Suction capacity: 3 m³/h
Ultimate vacuum: 2 mbar
Combinable with a condenser: yes
Power input: 250 W
Weight: 19.9 kg
Dimensions without condenser (w/d/h): 350 x 275 x 495 mm
